neuroml2::BaseWithoutId Class Reference

Class corresponding to the BaseWithoutId schema type. More...

#include <NeuroML_v2.3.hxx>

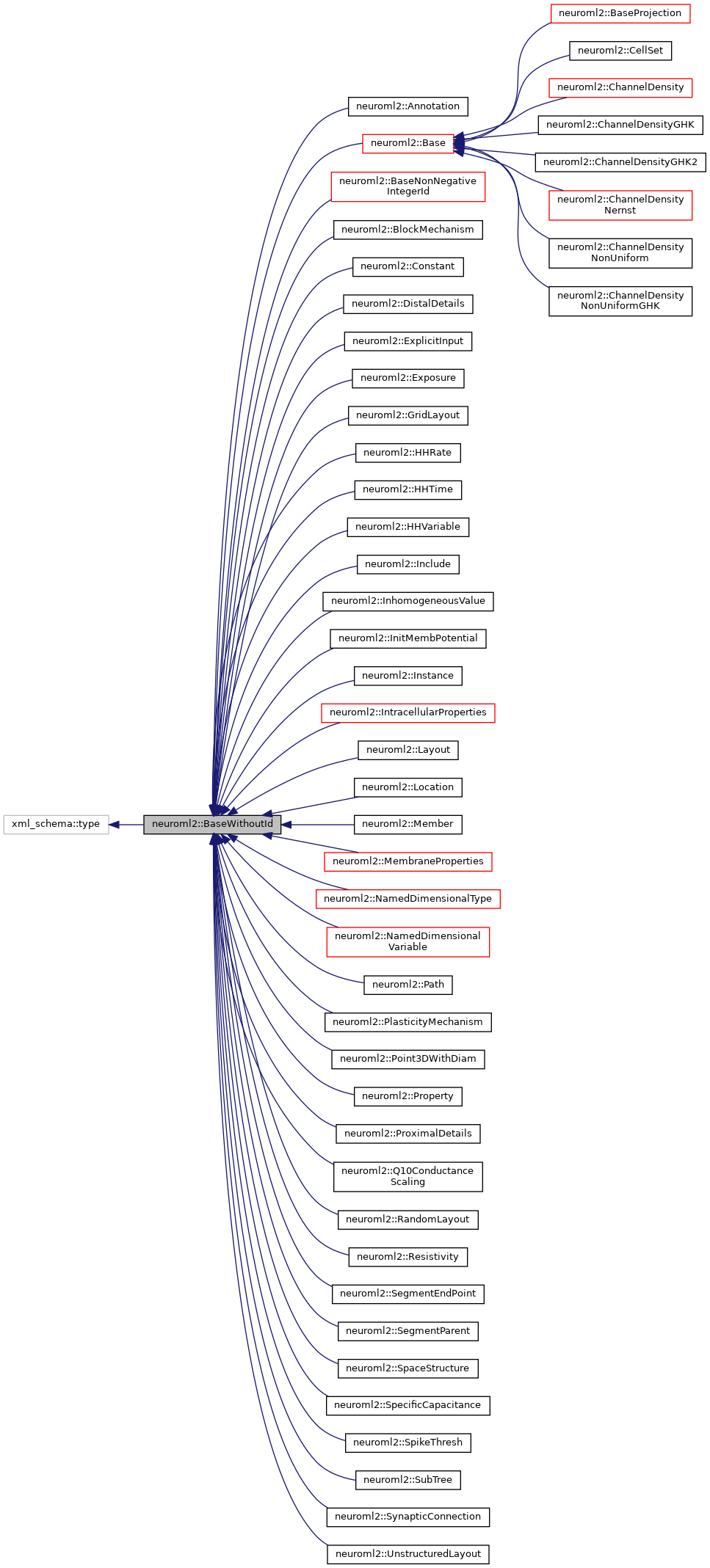

Inheritance diagram for neuroml2::BaseWithoutId:

Collaboration diagram for neuroml2::BaseWithoutId:

Constructors
	BaseWithoutId ()
	Create an instance from the ultimate base and initializers for required elements and attributes.
	BaseWithoutId (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...
	BaseWithoutId (const ::xercesc::DOMAttr &a, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM attribute. More...
	BaseWithoutId (const ::std::string &s, const ::xercesc::DOMElement *e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a string fragment. More...
	BaseWithoutId (const BaseWithoutId &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...
virtual BaseWithoutId *	_clone (::xml_schema::flags f=0, ::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...
virtual	~BaseWithoutId ()
	Destructor.

Detailed Description

Class corresponding to the BaseWithoutId schema type.

Base element without ID specified yet, e.g. for an element with a particular requirement on its id which does not comply with NmlId (e.g. Segment needs nonNegativeInteger).

Definition at line 3977 of file NeuroML_v2.3.hxx.

Constructor & Destructor Documentation

BaseWithoutId() [1/4]

neuroml2::BaseWithoutId::BaseWithoutId	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

Definition at line 19156 of file NeuroML_v2.3.cxx.

BaseWithoutId() [2/4]

neuroml2::BaseWithoutId::BaseWithoutId	(	const ::xercesc::DOMAttr &	a,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Create an instance from a DOM attribute.

Parameters

a	A DOM attribute to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

Definition at line 19164 of file NeuroML_v2.3.cxx.

BaseWithoutId() [3/4]

neuroml2::BaseWithoutId::BaseWithoutId	(	const ::std::string &	s,
		const ::xercesc::DOMElement *	e,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Create an instance from a string fragment.

Parameters

s	A string fragment to extract the data from.
e	A pointer to DOM element containing the string fragment.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

Definition at line 19172 of file NeuroML_v2.3.cxx.

BaseWithoutId() [4/4]

neuroml2::BaseWithoutId::BaseWithoutId	(	const BaseWithoutId &	x,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

Definition at line 19148 of file NeuroML_v2.3.cxx.

Member Function Documentation

_clone()

BaseWithoutId * neuroml2::BaseWithoutId::_clone ( ::xml_schema::flags  f = 0, ::xml_schema::container *  c = 0  ) const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns

A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented in neuroml2::Connection, neuroml2::Segment, neuroml2::Morphology, neuroml2::NeuroMLDocument, neuroml2::SpikeSourcePoisson, neuroml2::AlphaCurrSynapse, neuroml2::ExpCurrSynapse, neuroml2::AlphaCondSynapse, neuroml2::ExpCondSynapse, neuroml2::BasePynnSynapse, neuroml2::HH_cond_exp, neuroml2::EIF_cond_alpha_isfa_ista, neuroml2::EIF_cond_exp_isfa_ista, neuroml2::IF_cond_exp, neuroml2::IF_cond_alpha, neuroml2::IF_curr_exp, neuroml2::IF_curr_alpha, neuroml2::basePyNNIaFCondCell, neuroml2::basePyNNIaFCell, neuroml2::basePyNNCell, neuroml2::InputW, neuroml2::Input, neuroml2::InputList, neuroml2::ExplicitInput, neuroml2::ContinuousConnectionInstanceW, neuroml2::ContinuousConnectionInstance, neuroml2::ContinuousConnection, neuroml2::ContinuousProjection, neuroml2::ElectricalConnectionInstanceW, neuroml2::ElectricalConnectionInstance, neuroml2::ElectricalConnection, neuroml2::ElectricalProjection, neuroml2::ConnectionWD, neuroml2::Connection_base, neuroml2::BaseConnectionNewFormat, neuroml2::BaseConnectionOldFormat, neuroml2::BaseConnection, neuroml2::Projection, neuroml2::BaseProjection, neuroml2::SynapticConnection, neuroml2::CellSet, neuroml2::Location, neuroml2::Instance, neuroml2::GridLayout, neuroml2::RandomLayout, neuroml2::UnstructuredLayout, neuroml2::Layout, neuroml2::Population, neuroml2::Region, neuroml2::SpaceStructure, neuroml2::Space, neuroml2::Network, neuroml2::TransientPoissonFiringSynapse, neuroml2::PoissonFiringSynapse, neuroml2::SpikeGeneratorRefPoisson, neuroml2::SpikeGeneratorPoisson, neuroml2::SpikeGeneratorRandom, neuroml2::SpikeGenerator, neuroml2::TimedSynapticInput, neuroml2::SpikeArray, neuroml2::Spike, neuroml2::VoltageClampTriple, neuroml2::VoltageClamp, neuroml2::CompoundInputDL, neuroml2::CompoundInput, neuroml2::RampGeneratorDL, neuroml2::RampGenerator, neuroml2::SineGeneratorDL, neuroml2::SineGenerator, neuroml2::PulseGeneratorDL, neuroml2::PulseGenerator, neuroml2::ReactionScheme, neuroml2::ExtracellularPropertiesLocal, neuroml2::ExtracellularProperties, neuroml2::IntracellularProperties2CaPools, neuroml2::IntracellularProperties, neuroml2::ConcentrationModel_D, neuroml2::Species, neuroml2::InhomogeneousValue, neuroml2::ChannelDensityGHK2, neuroml2::ChannelDensityGHK, neuroml2::ChannelDensityNernstCa2, neuroml2::ChannelDensityNernst, neuroml2::ChannelDensityVShift, neuroml2::ChannelDensity, neuroml2::ChannelDensityNonUniformGHK, neuroml2::ChannelDensityNonUniformNernst, neuroml2::ChannelDensityNonUniform, neuroml2::ChannelPopulation, neuroml2::Resistivity, neuroml2::InitMembPotential, neuroml2::SpecificCapacitance, neuroml2::SpikeThresh, neuroml2::MembraneProperties2CaPools, neuroml2::MembraneProperties, neuroml2::BiophysicalProperties2CaPools, neuroml2::BiophysicalProperties, neuroml2::SegmentEndPoint, neuroml2::SubTree, neuroml2::Path, neuroml2::Include, neuroml2::Member, neuroml2::DistalDetails, neuroml2::ProximalDetails, neuroml2::InhomogeneousParameter, neuroml2::SegmentGroup, neuroml2::Point3DWithDiam, neuroml2::SegmentParent, neuroml2::Segment_base, neuroml2::BaseNonNegativeIntegerId, neuroml2::Morphology_base, neuroml2::Cell2CaPools, neuroml2::Cell, neuroml2::HindmarshRose1984Cell, neuroml2::PinskyRinzelCA3Cell, neuroml2::FitzHughNagumo1969Cell, neuroml2::FitzHughNagumoCell, neuroml2::AdExIaFCell, neuroml2::Izhikevich2007Cell, neuroml2::BaseCellMembPotCap, neuroml2::IzhikevichCell, neuroml2::IafRefCell, neuroml2::IafCell, neuroml2::IafTauRefCell, neuroml2::IafTauCell, neuroml2::BaseCell, neuroml2::PlasticityMechanism, neuroml2::BlockMechanism, neuroml2::BlockingPlasticSynapse, neuroml2::DoubleSynapse, neuroml2::ExpThreeSynapse, neuroml2::ExpTwoSynapse, neuroml2::ExpOneSynapse, neuroml2::AlphaSynapse, neuroml2::AlphaCurrentSynapse, neuroml2::GradedSynapse, neuroml2::LinearGradedSynapse, neuroml2::SilentSynapse, neuroml2::GapJunction, neuroml2::BaseConductanceBasedSynapseTwo, neuroml2::BaseConductanceBasedSynapse, neuroml2::BaseCurrentBasedSynapse, neuroml2::BaseVoltageDepSynapse, neuroml2::BaseSynapse, neuroml2::FixedFactorConcentrationModel, neuroml2::DecayingPoolConcentrationModel, neuroml2::HHTime, neuroml2::HHVariable, neuroml2::HHRate, neuroml2::GateFractionalSubgate, neuroml2::GateFractional, neuroml2::GateHHInstantaneous, neuroml2::GateHHRatesInf, neuroml2::GateHHRatesTau, neuroml2::GateHHRatesTauInf, neuroml2::GateHHTauInf, neuroml2::GateHHRates, neuroml2::GateHHUndetermined, neuroml2::GateKS, neuroml2::TauInfTransition, neuroml2::ReverseTransition, neuroml2::ForwardTransition, neuroml2::OpenState, neuroml2::ClosedState, neuroml2::Q10ConductanceScaling, neuroml2::IonChannelVShift, neuroml2::IonChannelHH, neuroml2::IonChannel, neuroml2::IonChannelKS, neuroml2::IonChannelScalable, neuroml2::NeuroMLDocument_base, neuroml2::Standalone, neuroml2::Base, neuroml2::ConditionalDerivedVariable, neuroml2::StateVariable, neuroml2::DerivedVariable, neuroml2::Requirement, neuroml2::LEMS_Property, neuroml2::DerivedParameter, neuroml2::Parameter, neuroml2::NamedDimensionalVariable, neuroml2::NamedDimensionalType, neuroml2::Exposure, neuroml2::Constant, neuroml2::Annotation, and neuroml2::Property.

Definition at line 19181 of file NeuroML_v2.3.cxx.

---

The documentation for this class was generated from the following files:

• src/NeuroML_v2.3.hxx
• src/NeuroML_v2.3.cxx
