Class corresponding to the IafTauCell schema type. More...

#include <NeuroML_v2.3.hxx>

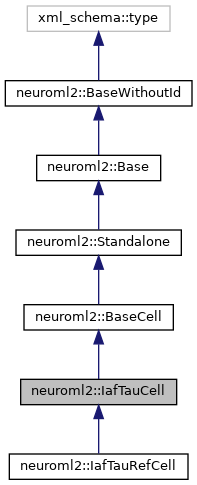

Inheritance diagram for neuroml2::IafTauCell:

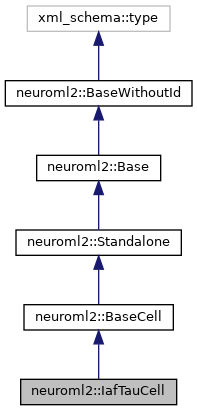

Collaboration diagram for neuroml2::IafTauCell:

leakReversal
Accessor and modifier functions for the leakReversal required attribute.
typedef ::neuroml2::Nml2Quantity_voltage	leakReversal_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< leakReversal_type, char >	leakReversal_traits
	Attribute traits type.

const leakReversal_type &	leakReversal () const
	Return a read-only (constant) reference to the attribute. More...

leakReversal_type &	leakReversal ()
	Return a read-write reference to the attribute. More...

void	leakReversal (const leakReversal_type &x)
	Set the attribute value. More...

void	leakReversal (::std::unique_ptr< leakReversal_type > p)
	Set the attribute value without copying. More...

thresh
Accessor and modifier functions for the thresh required attribute.
typedef ::neuroml2::Nml2Quantity_voltage	thresh_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< thresh_type, char >	thresh_traits
	Attribute traits type.

const thresh_type &	thresh () const
	Return a read-only (constant) reference to the attribute. More...

thresh_type &	thresh ()
	Return a read-write reference to the attribute. More...

void	thresh (const thresh_type &x)
	Set the attribute value. More...

void	thresh (::std::unique_ptr< thresh_type > p)
	Set the attribute value without copying. More...

reset
Accessor and modifier functions for the reset required attribute.
typedef ::neuroml2::Nml2Quantity_voltage	reset_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< reset_type, char >	reset_traits
	Attribute traits type.

const reset_type &	reset () const
	Return a read-only (constant) reference to the attribute. More...

reset_type &	reset ()
	Return a read-write reference to the attribute. More...

void	reset (const reset_type &x)
	Set the attribute value. More...

void	reset (::std::unique_ptr< reset_type > p)
	Set the attribute value without copying. More...

tau
Accessor and modifier functions for the tau required attribute.
typedef ::neuroml2::Nml2Quantity_time	tau_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< tau_type, char >	tau_traits
	Attribute traits type.

const tau_type &	tau () const
	Return a read-only (constant) reference to the attribute. More...

tau_type &	tau ()
	Return a read-write reference to the attribute. More...

void	tau (const tau_type &x)
	Set the attribute value. More...

void	tau (::std::unique_ptr< tau_type > p)
	Set the attribute value without copying. More...

Constructors
	IafTauCell (const id_type &, const leakReversal_type &, const thresh_type &, const reset_type &, const tau_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	IafTauCell (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	IafTauCell (const IafTauCell &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual IafTauCell *	_clone (::xml_schema::flags f=0, ::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...

IafTauCell &	operator= (const IafTauCell &x)
	Copy assignment operator. More...

virtual	~IafTauCell ()
	Destructor.

Additional Inherited Members
Public Types inherited from neuroml2::BaseCell
typedef ::neuroml2::NeuroLexId	neuroLexId_type
	Attribute type.

typedef ::xsd::cxx::tree::optional< neuroLexId_type >	neuroLexId_optional
	Attribute optional container type.

typedef ::xsd::cxx::tree::traits< neuroLexId_type, char >	neuroLexId_traits
	Attribute traits type.

Public Types inherited from neuroml2::Standalone
typedef ::neuroml2::Notes	notes_type
	Element type.

typedef ::xsd::cxx::tree::optional< notes_type >	notes_optional
	Element optional container type.

typedef ::xsd::cxx::tree::traits< notes_type, char >	notes_traits
	Element traits type.

typedef ::neuroml2::Property	property_type
	Element type.

typedef ::xsd::cxx::tree::sequence< property_type >	property_sequence
	Element sequence container type.

typedef property_sequence::iterator	property_iterator
	Element iterator type.

typedef property_sequence::const_iterator	property_const_iterator
	Element constant iterator type.

typedef ::xsd::cxx::tree::traits< property_type, char >	property_traits
	Element traits type.

typedef ::neuroml2::Annotation	annotation_type
	Element type.

typedef ::xsd::cxx::tree::optional< annotation_type >	annotation_optional
	Element optional container type.

typedef ::xsd::cxx::tree::traits< annotation_type, char >	annotation_traits
	Element traits type.

typedef ::neuroml2::MetaId	metaid_type
	Attribute type.

typedef ::xsd::cxx::tree::optional< metaid_type >	metaid_optional
	Attribute optional container type.

typedef ::xsd::cxx::tree::traits< metaid_type, char >	metaid_traits
	Attribute traits type.

Public Types inherited from neuroml2::Base
typedef ::neuroml2::NmlId	id_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< id_type, char >	id_traits
	Attribute traits type.

Public Member Functions inherited from neuroml2::BaseCell
const neuroLexId_optional &	neuroLexId () const
	Return a read-only (constant) reference to the attribute container. More...

neuroLexId_optional &	neuroLexId ()
	Return a read-write reference to the attribute container. More...

void	neuroLexId (const neuroLexId_type &x)
	Set the attribute value. More...

void	neuroLexId (const neuroLexId_optional &x)
	Set the attribute value. More...

void	neuroLexId (::std::unique_ptr< neuroLexId_type > p)
	Set the attribute value without copying. More...

	BaseCell (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseCell (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseCell (const BaseCell &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

BaseCell &	operator= (const BaseCell &x)
	Copy assignment operator. More...

virtual	~BaseCell ()
	Destructor.

Public Member Functions inherited from neuroml2::Standalone
const notes_optional &	notes () const
	Return a read-only (constant) reference to the element container. More...

notes_optional &	notes ()
	Return a read-write reference to the element container. More...

void	notes (const notes_type &x)
	Set the element value. More...

void	notes (const notes_optional &x)
	Set the element value. More...

void	notes (::std::unique_ptr< notes_type > p)
	Set the element value without copying. More...

const property_sequence &	property () const
	Return a read-only (constant) reference to the element sequence. More...

property_sequence &	property ()
	Return a read-write reference to the element sequence. More...

void	property (const property_sequence &s)
	Copy elements from a given sequence. More...

const annotation_optional &	annotation () const
	Return a read-only (constant) reference to the element container. More...

annotation_optional &	annotation ()
	Return a read-write reference to the element container. More...

void	annotation (const annotation_type &x)
	Set the element value. More...

void	annotation (const annotation_optional &x)
	Set the element value. More...

void	annotation (::std::unique_ptr< annotation_type > p)
	Set the element value without copying. More...

const metaid_optional &	metaid () const
	Return a read-only (constant) reference to the attribute container. More...

metaid_optional &	metaid ()
	Return a read-write reference to the attribute container. More...

void	metaid (const metaid_type &x)
	Set the attribute value. More...

void	metaid (const metaid_optional &x)
	Set the attribute value. More...

void	metaid (::std::unique_ptr< metaid_type > p)
	Set the attribute value without copying. More...

	Standalone (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	Standalone (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	Standalone (const Standalone &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

Standalone &	operator= (const Standalone &x)
	Copy assignment operator. More...

virtual	~Standalone ()
	Destructor.

Public Member Functions inherited from neuroml2::Base
const id_type &	id () const
	Return a read-only (constant) reference to the attribute. More...

id_type &	id ()
	Return a read-write reference to the attribute. More...

void	id (const id_type &x)
	Set the attribute value. More...

void	id (::std::unique_ptr< id_type > p)
	Set the attribute value without copying. More...

	Base (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	Base (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	Base (const Base &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

Base &	operator= (const Base &x)
	Copy assignment operator. More...

virtual	~Base ()
	Destructor.

Public Member Functions inherited from neuroml2::BaseWithoutId
	BaseWithoutId ()
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseWithoutId (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseWithoutId (const ::xercesc::DOMAttr &a, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM attribute. More...

	BaseWithoutId (const ::std::string &s, const ::xercesc::DOMElement e, ::xml_schema::flags f=0, ::xml_schema::container c=0)
	Create an instance from a string fragment. More...

	BaseWithoutId (const BaseWithoutId &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual	~BaseWithoutId ()
	Destructor.

Detailed Description

Class corresponding to the IafTauCell schema type.

Integrate and fire cell which returns to its leak reversal potential of leakReversal with a time constant tau
:param leakReversal: :type leakReversal: voltage :param tau: :type tau: time :param thresh: The membrane potential at which to emit a spiking event and reset voltage :type thresh: voltage :param reset: The value the membrane potential is reset to on spiking :type reset: voltage

Definition at line 31495 of file NeuroML_v2.3.hxx.

Constructor & Destructor Documentation

◆ IafTauCell() [1/2]

neuroml2::IafTauCell::IafTauCell	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

Definition at line 31320 of file NeuroML_v2.3.cxx.

◆ IafTauCell() [2/2]

neuroml2::IafTauCell::IafTauCell	(	const IafTauCell &	x,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

Definition at line 31308 of file NeuroML_v2.3.cxx.

Member Function Documentation

◆ _clone()

IafTauCell * neuroml2::IafTauCell::_clone	(	::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)		const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns: A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented from neuroml2::BaseCell.

Reimplemented in neuroml2::IafTauRefCell.

Definition at line 31405 of file NeuroML_v2.3.cxx.

◆ leakReversal() [1/4]

IafTauCell::leakReversal_type & neuroml2::IafTauCell::leakReversal ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 7329 of file NeuroML_v2.3.cxx.

◆ leakReversal() [2/4]

const IafTauCell::leakReversal_type & neuroml2::IafTauCell::leakReversal ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 7323 of file NeuroML_v2.3.cxx.

◆ leakReversal() [3/4]

void neuroml2::IafTauCell::leakReversal ( ::std::unique_ptr< leakReversal_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 7341 of file NeuroML_v2.3.cxx.

◆ leakReversal() [4/4]

void neuroml2::IafTauCell::leakReversal ( const leakReversal_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 7335 of file NeuroML_v2.3.cxx.

◆ operator=()

IafTauCell & neuroml2::IafTauCell::operator= ( const IafTauCell & x )

Copy assignment operator.

Parameters

x	An instance to make a copy of.

Returns: A reference to itself.

For polymorphic object models use the _clone function instead.

Definition at line 31412 of file NeuroML_v2.3.cxx.

◆ reset() [1/4]

IafTauCell::reset_type & neuroml2::IafTauCell::reset ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 7377 of file NeuroML_v2.3.cxx.

◆ reset() [2/4]

const IafTauCell::reset_type & neuroml2::IafTauCell::reset ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 7371 of file NeuroML_v2.3.cxx.

◆ reset() [3/4]

void neuroml2::IafTauCell::reset ( ::std::unique_ptr< reset_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 7389 of file NeuroML_v2.3.cxx.

◆ reset() [4/4]

void neuroml2::IafTauCell::reset ( const reset_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 7383 of file NeuroML_v2.3.cxx.

◆ tau() [1/4]

IafTauCell::tau_type & neuroml2::IafTauCell::tau ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 7401 of file NeuroML_v2.3.cxx.

◆ tau() [2/4]

const IafTauCell::tau_type & neuroml2::IafTauCell::tau ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 7395 of file NeuroML_v2.3.cxx.

◆ tau() [3/4]

void neuroml2::IafTauCell::tau ( ::std::unique_ptr< tau_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 7413 of file NeuroML_v2.3.cxx.

◆ tau() [4/4]

void neuroml2::IafTauCell::tau ( const tau_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 7407 of file NeuroML_v2.3.cxx.

◆ thresh() [1/4]

IafTauCell::thresh_type & neuroml2::IafTauCell::thresh ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 7353 of file NeuroML_v2.3.cxx.

◆ thresh() [2/4]

const IafTauCell::thresh_type & neuroml2::IafTauCell::thresh ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 7347 of file NeuroML_v2.3.cxx.

◆ thresh() [3/4]

void neuroml2::IafTauCell::thresh ( ::std::unique_ptr< thresh_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 7365 of file NeuroML_v2.3.cxx.

◆ thresh() [4/4]

void neuroml2::IafTauCell::thresh ( const thresh_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 7359 of file NeuroML_v2.3.cxx.

The documentation for this class was generated from the following files:

src/NeuroML_v2.3.hxx
src/NeuroML_v2.3.cxx

leakReversal

thresh

reset

tau

Constructors

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ IafTauCell() [1/2]

◆ IafTauCell() [2/2]

Member Function Documentation

◆ _clone()

◆ leakReversal() [1/4]

◆ leakReversal() [2/4]

◆ leakReversal() [3/4]

◆ leakReversal() [4/4]

◆ operator=()

◆ reset() [1/4]

◆ reset() [2/4]

◆ reset() [3/4]

◆ reset() [4/4]

◆ tau() [1/4]

◆ tau() [2/4]

◆ tau() [3/4]

◆ tau() [4/4]

◆ thresh() [1/4]

◆ thresh() [2/4]

◆ thresh() [3/4]

◆ thresh() [4/4]
