Class corresponding to the ChannelDensityNernst schema type. More...

#include <NeuroML_v2.3.hxx>

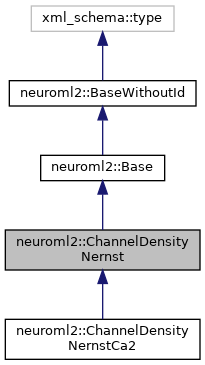

Inheritance diagram for neuroml2::ChannelDensityNernst:

Collaboration diagram for neuroml2::ChannelDensityNernst:

variableParameter
Accessor and modifier functions for the variableParameter sequence element.
typedef ::neuroml2::VariableParameter	variableParameter_type
	Element type.

typedef ::xsd::cxx::tree::sequence< variableParameter_type >	variableParameter_sequence
	Element sequence container type.

typedef variableParameter_sequence::iterator	variableParameter_iterator
	Element iterator type.

typedef variableParameter_sequence::const_iterator	variableParameter_const_iterator
	Element constant iterator type.

typedef ::xsd::cxx::tree::traits< variableParameter_type, char >	variableParameter_traits
	Element traits type.

const variableParameter_sequence &	variableParameter () const
	Return a read-only (constant) reference to the element sequence. More...

variableParameter_sequence &	variableParameter ()
	Return a read-write reference to the element sequence. More...

void	variableParameter (const variableParameter_sequence &s)
	Copy elements from a given sequence. More...

ionChannel
Accessor and modifier functions for the ionChannel required attribute.
typedef ::neuroml2::NmlId	ionChannel_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< ionChannel_type, char >	ionChannel_traits
	Attribute traits type.

const ionChannel_type &	ionChannel () const
	Return a read-only (constant) reference to the attribute. More...

ionChannel_type &	ionChannel ()
	Return a read-write reference to the attribute. More...

void	ionChannel (const ionChannel_type &x)
	Set the attribute value. More...

void	ionChannel (::std::unique_ptr< ionChannel_type > p)
	Set the attribute value without copying. More...

condDensity
Accessor and modifier functions for the condDensity optional attribute.
typedef ::neuroml2::Nml2Quantity_conductanceDensity	condDensity_type
	Attribute type.

typedef ::xsd::cxx::tree::optional< condDensity_type >	condDensity_optional
	Attribute optional container type.

typedef ::xsd::cxx::tree::traits< condDensity_type, char >	condDensity_traits
	Attribute traits type.

const condDensity_optional &	condDensity () const
	Return a read-only (constant) reference to the attribute container. More...

condDensity_optional &	condDensity ()
	Return a read-write reference to the attribute container. More...

void	condDensity (const condDensity_type &x)
	Set the attribute value. More...

void	condDensity (const condDensity_optional &x)
	Set the attribute value. More...

void	condDensity (::std::unique_ptr< condDensity_type > p)
	Set the attribute value without copying. More...

segmentGroup
Accessor and modifier functions for the segmentGroup optional attribute with a default value.
typedef ::neuroml2::NmlId	segmentGroup_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< segmentGroup_type, char >	segmentGroup_traits
	Attribute traits type.

const segmentGroup_type &	segmentGroup () const
	Return a read-only (constant) reference to the attribute. More...

segmentGroup_type &	segmentGroup ()
	Return a read-write reference to the attribute. More...

void	segmentGroup (const segmentGroup_type &x)
	Set the attribute value. More...

void	segmentGroup (::std::unique_ptr< segmentGroup_type > p)
	Set the attribute value without copying. More...

static const segmentGroup_type &	segmentGroup_default_value ()
	Return the default value for the attribute. More...

segment
Accessor and modifier functions for the segment optional attribute.
typedef ::neuroml2::NmlId	segment_type
	Attribute type.

typedef ::xsd::cxx::tree::optional< segment_type >	segment_optional
	Attribute optional container type.

typedef ::xsd::cxx::tree::traits< segment_type, char >	segment_traits
	Attribute traits type.

const segment_optional &	segment () const
	Return a read-only (constant) reference to the attribute container. More...

segment_optional &	segment ()
	Return a read-write reference to the attribute container. More...

void	segment (const segment_type &x)
	Set the attribute value. More...

void	segment (const segment_optional &x)
	Set the attribute value. More...

void	segment (::std::unique_ptr< segment_type > p)
	Set the attribute value without copying. More...

ion
Accessor and modifier functions for the ion required attribute.
typedef ::neuroml2::NmlId	ion_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< ion_type, char >	ion_traits
	Attribute traits type.

const ion_type &	ion () const
	Return a read-only (constant) reference to the attribute. More...

ion_type &	ion ()
	Return a read-write reference to the attribute. More...

void	ion (const ion_type &x)
	Set the attribute value. More...

void	ion (::std::unique_ptr< ion_type > p)
	Set the attribute value without copying. More...

Constructors
	ChannelDensityNernst (const id_type &, const ionChannel_type &, const ion_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	ChannelDensityNernst (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	ChannelDensityNernst (const ChannelDensityNernst &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual ChannelDensityNernst *	_clone (::xml_schema::flags f=0, ::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...

ChannelDensityNernst &	operator= (const ChannelDensityNernst &x)
	Copy assignment operator. More...

virtual	~ChannelDensityNernst ()
	Destructor.

Additional Inherited Members
Public Types inherited from neuroml2::Base
typedef ::neuroml2::NmlId	id_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< id_type, char >	id_traits
	Attribute traits type.

Public Member Functions inherited from neuroml2::Base
const id_type &	id () const
	Return a read-only (constant) reference to the attribute. More...

id_type &	id ()
	Return a read-write reference to the attribute. More...

void	id (const id_type &x)
	Set the attribute value. More...

void	id (::std::unique_ptr< id_type > p)
	Set the attribute value without copying. More...

	Base (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	Base (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	Base (const Base &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

Base &	operator= (const Base &x)
	Copy assignment operator. More...

virtual	~Base ()
	Destructor.

Public Member Functions inherited from neuroml2::BaseWithoutId
	BaseWithoutId ()
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseWithoutId (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseWithoutId (const ::xercesc::DOMAttr &a, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM attribute. More...

	BaseWithoutId (const ::std::string &s, const ::xercesc::DOMElement e, ::xml_schema::flags f=0, ::xml_schema::container c=0)
	Create an instance from a string fragment. More...

	BaseWithoutId (const BaseWithoutId &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual	~BaseWithoutId ()
	Destructor.

Detailed Description

Class corresponding to the ChannelDensityNernst schema type.

Specifies a time varying conductance density, gDensity, which is distributed on an area of the cell, producing a current density iDensity and whose reversal potential is calculated from the Nernst equation. Hard coded for Ca only! See https://github.com/OpenSourceBrain/ghk-nernst.
:param condDensity: :type condDensity: conductanceDensity

Definition at line 47015 of file NeuroML_v2.3.hxx.

Constructor & Destructor Documentation

◆ ChannelDensityNernst() [1/2]

neuroml2::ChannelDensityNernst::ChannelDensityNernst	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

Definition at line 38408 of file NeuroML_v2.3.cxx.

◆ ChannelDensityNernst() [2/2]

neuroml2::ChannelDensityNernst::ChannelDensityNernst	(	const ChannelDensityNernst &	x,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

Definition at line 38394 of file NeuroML_v2.3.cxx.

Member Function Documentation

◆ _clone()

ChannelDensityNernst * neuroml2::ChannelDensityNernst::_clone	(	::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)		const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns: A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented from neuroml2::Base.

Reimplemented in neuroml2::ChannelDensityNernstCa2.

Definition at line 38512 of file NeuroML_v2.3.cxx.

◆ condDensity() [1/5]

ChannelDensityNernst::condDensity_optional & neuroml2::ChannelDensityNernst::condDensity ( )

Return a read-write reference to the attribute container.

Returns: A reference to the optional container.

Definition at line 11646 of file NeuroML_v2.3.cxx.

◆ condDensity() [2/5]

const ChannelDensityNernst::condDensity_optional & neuroml2::ChannelDensityNernst::condDensity ( ) const

Return a read-only (constant) reference to the attribute container.

Returns: A constant reference to the optional container.

Definition at line 11640 of file NeuroML_v2.3.cxx.

◆ condDensity() [3/5]

void neuroml2::ChannelDensityNernst::condDensity ( ::std::unique_ptr< condDensity_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 11664 of file NeuroML_v2.3.cxx.

◆ condDensity() [4/5]

void neuroml2::ChannelDensityNernst::condDensity ( const condDensity_optional & x )

Set the attribute value.

Parameters

x	An optional container with the new value to set.

If the value is present in x then this function makes a copy of this value and sets it as the new value of the attribute. Otherwise the attribute container is set the 'not present' state.

Definition at line 11658 of file NeuroML_v2.3.cxx.

◆ condDensity() [5/5]

void neuroml2::ChannelDensityNernst::condDensity ( const condDensity_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 11652 of file NeuroML_v2.3.cxx.

◆ ion() [1/4]

ChannelDensityNernst::ion_type & neuroml2::ChannelDensityNernst::ion ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 11736 of file NeuroML_v2.3.cxx.

◆ ion() [2/4]

const ChannelDensityNernst::ion_type & neuroml2::ChannelDensityNernst::ion ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 11730 of file NeuroML_v2.3.cxx.

◆ ion() [3/4]

void neuroml2::ChannelDensityNernst::ion ( ::std::unique_ptr< ion_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 11748 of file NeuroML_v2.3.cxx.

◆ ion() [4/4]

void neuroml2::ChannelDensityNernst::ion ( const ion_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 11742 of file NeuroML_v2.3.cxx.

◆ ionChannel() [1/4]

ChannelDensityNernst::ionChannel_type & neuroml2::ChannelDensityNernst::ionChannel ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 11622 of file NeuroML_v2.3.cxx.

◆ ionChannel() [2/4]

const ChannelDensityNernst::ionChannel_type & neuroml2::ChannelDensityNernst::ionChannel ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 11616 of file NeuroML_v2.3.cxx.

◆ ionChannel() [3/4]

void neuroml2::ChannelDensityNernst::ionChannel ( ::std::unique_ptr< ionChannel_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 11634 of file NeuroML_v2.3.cxx.

◆ ionChannel() [4/4]

void neuroml2::ChannelDensityNernst::ionChannel ( const ionChannel_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 11628 of file NeuroML_v2.3.cxx.

◆ operator=()

ChannelDensityNernst & neuroml2::ChannelDensityNernst::operator= ( const ChannelDensityNernst & x )

Copy assignment operator.

Parameters

x	An instance to make a copy of.

Returns: A reference to itself.

For polymorphic object models use the _clone function instead.

Definition at line 38519 of file NeuroML_v2.3.cxx.

◆ segment() [1/5]

ChannelDensityNernst::segment_optional & neuroml2::ChannelDensityNernst::segment ( )

Return a read-write reference to the attribute container.

Returns: A reference to the optional container.

Definition at line 11706 of file NeuroML_v2.3.cxx.

◆ segment() [2/5]

const ChannelDensityNernst::segment_optional & neuroml2::ChannelDensityNernst::segment ( ) const

Return a read-only (constant) reference to the attribute container.

Returns: A constant reference to the optional container.

Definition at line 11700 of file NeuroML_v2.3.cxx.

◆ segment() [3/5]

void neuroml2::ChannelDensityNernst::segment ( ::std::unique_ptr< segment_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 11724 of file NeuroML_v2.3.cxx.

◆ segment() [4/5]

void neuroml2::ChannelDensityNernst::segment ( const segment_optional & x )

Set the attribute value.

Parameters

x	An optional container with the new value to set.

If the value is present in x then this function makes a copy of this value and sets it as the new value of the attribute. Otherwise the attribute container is set the 'not present' state.

Definition at line 11718 of file NeuroML_v2.3.cxx.

◆ segment() [5/5]

void neuroml2::ChannelDensityNernst::segment ( const segment_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 11712 of file NeuroML_v2.3.cxx.

◆ segmentGroup() [1/4]

ChannelDensityNernst::segmentGroup_type & neuroml2::ChannelDensityNernst::segmentGroup ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 11676 of file NeuroML_v2.3.cxx.

◆ segmentGroup() [2/4]

const ChannelDensityNernst::segmentGroup_type & neuroml2::ChannelDensityNernst::segmentGroup ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 11670 of file NeuroML_v2.3.cxx.

◆ segmentGroup() [3/4]

void neuroml2::ChannelDensityNernst::segmentGroup ( ::std::unique_ptr< segmentGroup_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 11688 of file NeuroML_v2.3.cxx.

◆ segmentGroup() [4/4]

void neuroml2::ChannelDensityNernst::segmentGroup ( const segmentGroup_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 11682 of file NeuroML_v2.3.cxx.

◆ segmentGroup_default_value()

const ChannelDensityNernst::segmentGroup_type & neuroml2::ChannelDensityNernst::segmentGroup_default_value ( )

static

Return the default value for the attribute.

Returns: A read-only (constant) reference to the attribute's default value.

Definition at line 11694 of file NeuroML_v2.3.cxx.

◆ variableParameter() [1/3]

ChannelDensityNernst::variableParameter_sequence & neuroml2::ChannelDensityNernst::variableParameter ( )

Return a read-write reference to the element sequence.

Returns: A reference to the sequence container.

Definition at line 11604 of file NeuroML_v2.3.cxx.

◆ variableParameter() [2/3]

const ChannelDensityNernst::variableParameter_sequence & neuroml2::ChannelDensityNernst::variableParameter ( ) const

Return a read-only (constant) reference to the element sequence.

Returns: A constant reference to the sequence container.

Definition at line 11598 of file NeuroML_v2.3.cxx.

◆ variableParameter() [3/3]

void neuroml2::ChannelDensityNernst::variableParameter ( const variableParameter_sequence & s )

Copy elements from a given sequence.

Parameters

s	A sequence to copy elements from.

For each element in s this function makes a copy and adds it to the sequence. Note that this operation completely changes the sequence and all old elements will be lost.

Definition at line 11610 of file NeuroML_v2.3.cxx.

The documentation for this class was generated from the following files:

src/NeuroML_v2.3.hxx
src/NeuroML_v2.3.cxx

variableParameter

ionChannel

condDensity

segmentGroup

segment

ion

Constructors

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ChannelDensityNernst() [1/2]

◆ ChannelDensityNernst() [2/2]

Member Function Documentation

◆ _clone()

◆ condDensity() [1/5]

◆ condDensity() [2/5]

◆ condDensity() [3/5]

◆ condDensity() [4/5]

◆ condDensity() [5/5]

◆ ion() [1/4]

◆ ion() [2/4]

◆ ion() [3/4]

◆ ion() [4/4]

◆ ionChannel() [1/4]

◆ ionChannel() [2/4]

◆ ionChannel() [3/4]

◆ ionChannel() [4/4]

◆ operator=()

◆ segment() [1/5]

◆ segment() [2/5]

◆ segment() [3/5]

◆ segment() [4/5]

◆ segment() [5/5]

◆ segmentGroup() [1/4]

◆ segmentGroup() [2/4]

◆ segmentGroup() [3/4]

◆ segmentGroup() [4/4]

◆ segmentGroup_default_value()

◆ variableParameter() [1/3]

◆ variableParameter() [2/3]

◆ variableParameter() [3/3]
