neuroml2::ChannelDensityNernstCa2 Class Reference

Class corresponding to the ChannelDensityNernstCa2 schema type. More...

#include <NeuroML_v2.3.hxx>

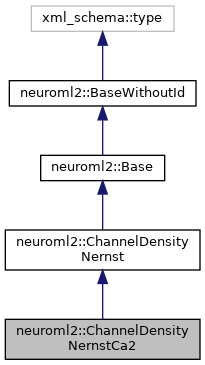

Inheritance diagram for neuroml2::ChannelDensityNernstCa2:

Collaboration diagram for neuroml2::ChannelDensityNernstCa2:

Constructors
	ChannelDensityNernstCa2 (const id_type &, const ionChannel_type &, const ion_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.
	ChannelDensityNernstCa2 (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...
	ChannelDensityNernstCa2 (const ChannelDensityNernstCa2 &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...
virtual ChannelDensityNernstCa2 *	_clone (::xml_schema::flags f=0, ::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...
virtual	~ChannelDensityNernstCa2 ()
	Destructor.

Additional Inherited Members
Public Types inherited from neuroml2::ChannelDensityNernst
typedef ::neuroml2::VariableParameter	variableParameter_type
	Element type.
typedef ::xsd::cxx::tree::sequence< variableParameter_type >	variableParameter_sequence
	Element sequence container type.
typedef variableParameter_sequence::iterator	variableParameter_iterator
	Element iterator type.
typedef variableParameter_sequence::const_iterator	variableParameter_const_iterator
	Element constant iterator type.
typedef ::xsd::cxx::tree::traits< variableParameter_type, char >	variableParameter_traits
	Element traits type.
typedef ::neuroml2::NmlId	ionChannel_type
	Attribute type.
typedef ::xsd::cxx::tree::traits< ionChannel_type, char >	ionChannel_traits
	Attribute traits type.
typedef ::neuroml2::Nml2Quantity_conductanceDensity	condDensity_type
	Attribute type.
typedef ::xsd::cxx::tree::optional< condDensity_type >	condDensity_optional
	Attribute optional container type.
typedef ::xsd::cxx::tree::traits< condDensity_type, char >	condDensity_traits
	Attribute traits type.
typedef ::neuroml2::NmlId	segmentGroup_type
	Attribute type.
typedef ::xsd::cxx::tree::traits< segmentGroup_type, char >	segmentGroup_traits
	Attribute traits type.
typedef ::neuroml2::NmlId	segment_type
	Attribute type.
typedef ::xsd::cxx::tree::optional< segment_type >	segment_optional
	Attribute optional container type.
typedef ::xsd::cxx::tree::traits< segment_type, char >	segment_traits
	Attribute traits type.
typedef ::neuroml2::NmlId	ion_type
	Attribute type.
typedef ::xsd::cxx::tree::traits< ion_type, char >	ion_traits
	Attribute traits type.
Public Types inherited from neuroml2::Base
typedef ::neuroml2::NmlId	id_type
	Attribute type.
typedef ::xsd::cxx::tree::traits< id_type, char >	id_traits
	Attribute traits type.
Public Member Functions inherited from neuroml2::ChannelDensityNernst
const variableParameter_sequence &	variableParameter () const
	Return a read-only (constant) reference to the element sequence. More...
variableParameter_sequence &	variableParameter ()
	Return a read-write reference to the element sequence. More...
void	variableParameter (const variableParameter_sequence &s)
	Copy elements from a given sequence. More...
const ionChannel_type &	ionChannel () const
	Return a read-only (constant) reference to the attribute. More...
ionChannel_type &	ionChannel ()
	Return a read-write reference to the attribute. More...
void	ionChannel (const ionChannel_type &x)
	Set the attribute value. More...
void	ionChannel (::std::unique_ptr< ionChannel_type > p)
	Set the attribute value without copying. More...
const condDensity_optional &	condDensity () const
	Return a read-only (constant) reference to the attribute container. More...
condDensity_optional &	condDensity ()
	Return a read-write reference to the attribute container. More...
void	condDensity (const condDensity_type &x)
	Set the attribute value. More...
void	condDensity (const condDensity_optional &x)
	Set the attribute value. More...
void	condDensity (::std::unique_ptr< condDensity_type > p)
	Set the attribute value without copying. More...
const segmentGroup_type &	segmentGroup () const
	Return a read-only (constant) reference to the attribute. More...
segmentGroup_type &	segmentGroup ()
	Return a read-write reference to the attribute. More...
void	segmentGroup (const segmentGroup_type &x)
	Set the attribute value. More...
void	segmentGroup (::std::unique_ptr< segmentGroup_type > p)
	Set the attribute value without copying. More...
const segment_optional &	segment () const
	Return a read-only (constant) reference to the attribute container. More...
segment_optional &	segment ()
	Return a read-write reference to the attribute container. More...
void	segment (const segment_type &x)
	Set the attribute value. More...
void	segment (const segment_optional &x)
	Set the attribute value. More...
void	segment (::std::unique_ptr< segment_type > p)
	Set the attribute value without copying. More...
const ion_type &	ion () const
	Return a read-only (constant) reference to the attribute. More...
ion_type &	ion ()
	Return a read-write reference to the attribute. More...
void	ion (const ion_type &x)
	Set the attribute value. More...
void	ion (::std::unique_ptr< ion_type > p)
	Set the attribute value without copying. More...
	ChannelDensityNernst (const id_type &, const ionChannel_type &, const ion_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.
	ChannelDensityNernst (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...
	ChannelDensityNernst (const ChannelDensityNernst &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...
ChannelDensityNernst &	operator= (const ChannelDensityNernst &x)
	Copy assignment operator. More...
virtual	~ChannelDensityNernst ()
	Destructor.
Public Member Functions inherited from neuroml2::Base
const id_type &	id () const
	Return a read-only (constant) reference to the attribute. More...
id_type &	id ()
	Return a read-write reference to the attribute. More...
void	id (const id_type &x)
	Set the attribute value. More...
void	id (::std::unique_ptr< id_type > p)
	Set the attribute value without copying. More...
	Base (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.
	Base (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...
	Base (const Base &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...
Base &	operator= (const Base &x)
	Copy assignment operator. More...
virtual	~Base ()
	Destructor.
Public Member Functions inherited from neuroml2::BaseWithoutId
	BaseWithoutId ()
	Create an instance from the ultimate base and initializers for required elements and attributes.
	BaseWithoutId (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...
	BaseWithoutId (const ::xercesc::DOMAttr &a, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM attribute. More...
	BaseWithoutId (const ::std::string &s, const ::xercesc::DOMElement *e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a string fragment. More...
	BaseWithoutId (const BaseWithoutId &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...
virtual	~BaseWithoutId ()
	Destructor.
Static Public Member Functions inherited from neuroml2::ChannelDensityNernst
static const segmentGroup_type &	segmentGroup_default_value ()
	Return the default value for the attribute. More...

Detailed Description

Class corresponding to the ChannelDensityNernstCa2 schema type.

This component is similar to the original component type channelDensityNernst but it is changed in order to have a reversal potential that depends on a second independent Ca++ pool ( ca2 ). See https://github.com/OpenSourceBrain/ghk-nernst.
:param condDensity: :type condDensity: conductanceDensity

Definition at line 47531 of file NeuroML_v2.3.hxx.

Constructor & Destructor Documentation

ChannelDensityNernstCa2() [1/2]

neuroml2::ChannelDensityNernstCa2::ChannelDensityNernstCa2	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

Definition at line 38596 of file NeuroML_v2.3.cxx.

ChannelDensityNernstCa2() [2/2]

neuroml2::ChannelDensityNernstCa2::ChannelDensityNernstCa2	(	const ChannelDensityNernstCa2 &	x,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

Definition at line 38588 of file NeuroML_v2.3.cxx.

Member Function Documentation

_clone()

ChannelDensityNernstCa2 * neuroml2::ChannelDensityNernstCa2::_clone ( ::xml_schema::flags  f = 0, ::xml_schema::container *  c = 0  ) const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns

A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented from neuroml2::ChannelDensityNernst.

Definition at line 38604 of file NeuroML_v2.3.cxx.

---

The documentation for this class was generated from the following files:

• src/NeuroML_v2.3.hxx
• src/NeuroML_v2.3.cxx
