Class corresponding to the BaseProjection schema type. More...

#include <NeuroML_v2.3.hxx>

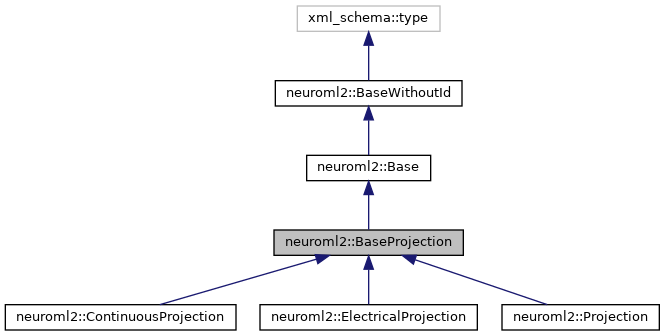

Inheritance diagram for neuroml2::BaseProjection:

Collaboration diagram for neuroml2::BaseProjection:

presynapticPopulation
Accessor and modifier functions for the presynapticPopulation required attribute.
typedef ::neuroml2::NmlId	presynapticPopulation_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< presynapticPopulation_type, char >	presynapticPopulation_traits
	Attribute traits type.

const presynapticPopulation_type &	presynapticPopulation () const
	Return a read-only (constant) reference to the attribute. More...

presynapticPopulation_type &	presynapticPopulation ()
	Return a read-write reference to the attribute. More...

void	presynapticPopulation (const presynapticPopulation_type &x)
	Set the attribute value. More...

void	presynapticPopulation (::std::unique_ptr< presynapticPopulation_type > p)
	Set the attribute value without copying. More...

postsynapticPopulation
Accessor and modifier functions for the postsynapticPopulation required attribute.
typedef ::neuroml2::NmlId	postsynapticPopulation_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< postsynapticPopulation_type, char >	postsynapticPopulation_traits
	Attribute traits type.

const postsynapticPopulation_type &	postsynapticPopulation () const
	Return a read-only (constant) reference to the attribute. More...

postsynapticPopulation_type &	postsynapticPopulation ()
	Return a read-write reference to the attribute. More...

void	postsynapticPopulation (const postsynapticPopulation_type &x)
	Set the attribute value. More...

void	postsynapticPopulation (::std::unique_ptr< postsynapticPopulation_type > p)
	Set the attribute value without copying. More...

Constructors
	BaseProjection (const id_type &, const presynapticPopulation_type &, const postsynapticPopulation_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseProjection (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseProjection (const BaseProjection &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual BaseProjection *	_clone (::xml_schema::flags f=0, ::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...

BaseProjection &	operator= (const BaseProjection &x)
	Copy assignment operator. More...

virtual	~BaseProjection ()
	Destructor.

Additional Inherited Members
Public Types inherited from neuroml2::Base
typedef ::neuroml2::NmlId	id_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< id_type, char >	id_traits
	Attribute traits type.

Public Member Functions inherited from neuroml2::Base
const id_type &	id () const
	Return a read-only (constant) reference to the attribute. More...

id_type &	id ()
	Return a read-write reference to the attribute. More...

void	id (const id_type &x)
	Set the attribute value. More...

void	id (::std::unique_ptr< id_type > p)
	Set the attribute value without copying. More...

	Base (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	Base (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	Base (const Base &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

Base &	operator= (const Base &x)
	Copy assignment operator. More...

virtual	~Base ()
	Destructor.

Public Member Functions inherited from neuroml2::BaseWithoutId
	BaseWithoutId ()
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseWithoutId (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseWithoutId (const ::xercesc::DOMAttr &a, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM attribute. More...

	BaseWithoutId (const ::std::string &s, const ::xercesc::DOMElement e, ::xml_schema::flags f=0, ::xml_schema::container c=0)
	Create an instance from a string fragment. More...

	BaseWithoutId (const BaseWithoutId &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual	~BaseWithoutId ()
	Destructor.

Detailed Description

Class corresponding to the BaseProjection schema type.

Base for projection (set of synaptic connections) between two populations

Definition at line 61699 of file NeuroML_v2.3.hxx.

Constructor & Destructor Documentation

◆ BaseProjection() [1/2]

neuroml2::BaseProjection::BaseProjection	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

Definition at line 45161 of file NeuroML_v2.3.cxx.

◆ BaseProjection() [2/2]

neuroml2::BaseProjection::BaseProjection	(	const BaseProjection &	x,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

Definition at line 45151 of file NeuroML_v2.3.cxx.

Member Function Documentation

◆ _clone()

BaseProjection * neuroml2::BaseProjection::_clone	(	::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)		const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns: A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented from neuroml2::Base.

Reimplemented in neuroml2::ContinuousProjection, neuroml2::ElectricalProjection, and neuroml2::Projection.

Definition at line 45218 of file NeuroML_v2.3.cxx.

◆ operator=()

BaseProjection & neuroml2::BaseProjection::operator= ( const BaseProjection & x )

Copy assignment operator.

Parameters

x	An instance to make a copy of.

Returns: A reference to itself.

For polymorphic object models use the _clone function instead.

Definition at line 45225 of file NeuroML_v2.3.cxx.

◆ postsynapticPopulation() [1/4]

BaseProjection::postsynapticPopulation_type & neuroml2::BaseProjection::postsynapticPopulation ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 15489 of file NeuroML_v2.3.cxx.

◆ postsynapticPopulation() [2/4]

const BaseProjection::postsynapticPopulation_type & neuroml2::BaseProjection::postsynapticPopulation ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 15483 of file NeuroML_v2.3.cxx.

◆ postsynapticPopulation() [3/4]

void neuroml2::BaseProjection::postsynapticPopulation ( ::std::unique_ptr< postsynapticPopulation_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 15501 of file NeuroML_v2.3.cxx.

◆ postsynapticPopulation() [4/4]

void neuroml2::BaseProjection::postsynapticPopulation ( const postsynapticPopulation_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 15495 of file NeuroML_v2.3.cxx.

◆ presynapticPopulation() [1/4]

BaseProjection::presynapticPopulation_type & neuroml2::BaseProjection::presynapticPopulation ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 15465 of file NeuroML_v2.3.cxx.

◆ presynapticPopulation() [2/4]

const BaseProjection::presynapticPopulation_type & neuroml2::BaseProjection::presynapticPopulation ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 15459 of file NeuroML_v2.3.cxx.

◆ presynapticPopulation() [3/4]

void neuroml2::BaseProjection::presynapticPopulation ( ::std::unique_ptr< presynapticPopulation_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 15477 of file NeuroML_v2.3.cxx.

◆ presynapticPopulation() [4/4]

void neuroml2::BaseProjection::presynapticPopulation ( const presynapticPopulation_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 15471 of file NeuroML_v2.3.cxx.

The documentation for this class was generated from the following files:

src/NeuroML_v2.3.hxx
src/NeuroML_v2.3.cxx
