Class corresponding to the ContinuousProjection schema type. More...

#include <NeuroML_v2.3.hxx>

Inheritance diagram for neuroml2::ContinuousProjection:

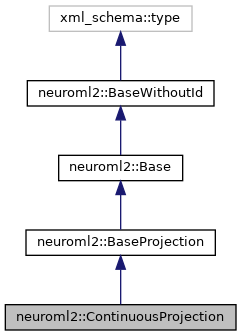

Collaboration diagram for neuroml2::ContinuousProjection:

continuousConnection
Accessor and modifier functions for the continuousConnection sequence element.
typedef ::neuroml2::ContinuousConnection	continuousConnection_type
	Element type.

typedef ::xsd::cxx::tree::sequence< continuousConnection_type >	continuousConnection_sequence
	Element sequence container type.

typedef continuousConnection_sequence::iterator	continuousConnection_iterator
	Element iterator type.

typedef continuousConnection_sequence::const_iterator	continuousConnection_const_iterator
	Element constant iterator type.

typedef ::xsd::cxx::tree::traits< continuousConnection_type, char >	continuousConnection_traits
	Element traits type.

const continuousConnection_sequence &	continuousConnection () const
	Return a read-only (constant) reference to the element sequence. More...

continuousConnection_sequence &	continuousConnection ()
	Return a read-write reference to the element sequence. More...

void	continuousConnection (const continuousConnection_sequence &s)
	Copy elements from a given sequence. More...

continuousConnectionInstance
Accessor and modifier functions for the continuousConnectionInstance sequence element.
typedef ::neuroml2::ContinuousConnectionInstance	continuousConnectionInstance_type
	Element type.

typedef ::xsd::cxx::tree::sequence< continuousConnectionInstance_type >	continuousConnectionInstance_sequence
	Element sequence container type.

typedef continuousConnectionInstance_sequence::iterator	continuousConnectionInstance_iterator
	Element iterator type.

typedef continuousConnectionInstance_sequence::const_iterator	continuousConnectionInstance_const_iterator
	Element constant iterator type.

typedef ::xsd::cxx::tree::traits< continuousConnectionInstance_type, char >	continuousConnectionInstance_traits
	Element traits type.

const continuousConnectionInstance_sequence &	continuousConnectionInstance () const
	Return a read-only (constant) reference to the element sequence. More...

continuousConnectionInstance_sequence &	continuousConnectionInstance ()
	Return a read-write reference to the element sequence. More...

void	continuousConnectionInstance (const continuousConnectionInstance_sequence &s)
	Copy elements from a given sequence. More...

continuousConnectionInstanceW
Accessor and modifier functions for the continuousConnectionInstanceW sequence element.
typedef ::neuroml2::ContinuousConnectionInstanceW	continuousConnectionInstanceW_type
	Element type.

typedef ::xsd::cxx::tree::sequence< continuousConnectionInstanceW_type >	continuousConnectionInstanceW_sequence
	Element sequence container type.

typedef continuousConnectionInstanceW_sequence::iterator	continuousConnectionInstanceW_iterator
	Element iterator type.

typedef continuousConnectionInstanceW_sequence::const_iterator	continuousConnectionInstanceW_const_iterator
	Element constant iterator type.

typedef ::xsd::cxx::tree::traits< continuousConnectionInstanceW_type, char >	continuousConnectionInstanceW_traits
	Element traits type.

const continuousConnectionInstanceW_sequence &	continuousConnectionInstanceW () const
	Return a read-only (constant) reference to the element sequence. More...

continuousConnectionInstanceW_sequence &	continuousConnectionInstanceW ()
	Return a read-write reference to the element sequence. More...

void	continuousConnectionInstanceW (const continuousConnectionInstanceW_sequence &s)
	Copy elements from a given sequence. More...

Constructors
	ContinuousProjection (const id_type &, const presynapticPopulation_type &, const postsynapticPopulation_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	ContinuousProjection (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	ContinuousProjection (const ContinuousProjection &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual ContinuousProjection *	_clone (::xml_schema::flags f=0, ::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...

ContinuousProjection &	operator= (const ContinuousProjection &x)
	Copy assignment operator. More...

virtual	~ContinuousProjection ()
	Destructor.

Additional Inherited Members
Public Types inherited from neuroml2::BaseProjection
typedef ::neuroml2::NmlId	presynapticPopulation_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< presynapticPopulation_type, char >	presynapticPopulation_traits
	Attribute traits type.

typedef ::neuroml2::NmlId	postsynapticPopulation_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< postsynapticPopulation_type, char >	postsynapticPopulation_traits
	Attribute traits type.

Public Types inherited from neuroml2::Base
typedef ::neuroml2::NmlId	id_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< id_type, char >	id_traits
	Attribute traits type.

Public Member Functions inherited from neuroml2::BaseProjection
const presynapticPopulation_type &	presynapticPopulation () const
	Return a read-only (constant) reference to the attribute. More...

presynapticPopulation_type &	presynapticPopulation ()
	Return a read-write reference to the attribute. More...

void	presynapticPopulation (const presynapticPopulation_type &x)
	Set the attribute value. More...

void	presynapticPopulation (::std::unique_ptr< presynapticPopulation_type > p)
	Set the attribute value without copying. More...

const postsynapticPopulation_type &	postsynapticPopulation () const
	Return a read-only (constant) reference to the attribute. More...

postsynapticPopulation_type &	postsynapticPopulation ()
	Return a read-write reference to the attribute. More...

void	postsynapticPopulation (const postsynapticPopulation_type &x)
	Set the attribute value. More...

void	postsynapticPopulation (::std::unique_ptr< postsynapticPopulation_type > p)
	Set the attribute value without copying. More...

	BaseProjection (const id_type &, const presynapticPopulation_type &, const postsynapticPopulation_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseProjection (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseProjection (const BaseProjection &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

BaseProjection &	operator= (const BaseProjection &x)
	Copy assignment operator. More...

virtual	~BaseProjection ()
	Destructor.

Public Member Functions inherited from neuroml2::Base
const id_type &	id () const
	Return a read-only (constant) reference to the attribute. More...

id_type &	id ()
	Return a read-write reference to the attribute. More...

void	id (const id_type &x)
	Set the attribute value. More...

void	id (::std::unique_ptr< id_type > p)
	Set the attribute value without copying. More...

	Base (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	Base (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	Base (const Base &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

Base &	operator= (const Base &x)
	Copy assignment operator. More...

virtual	~Base ()
	Destructor.

Public Member Functions inherited from neuroml2::BaseWithoutId
	BaseWithoutId ()
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseWithoutId (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseWithoutId (const ::xercesc::DOMAttr &a, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM attribute. More...

	BaseWithoutId (const ::std::string &s, const ::xercesc::DOMElement e, ::xml_schema::flags f=0, ::xml_schema::container c=0)
	Create an instance from a string fragment. More...

	BaseWithoutId (const BaseWithoutId &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual	~BaseWithoutId ()
	Destructor.

Detailed Description

Class corresponding to the ContinuousProjection schema type.

A projection between presynapticPopulation and postsynapticPopulation through components preComponent at the start and postComponent at the end of a continuousConnection or continuousConnectionInstance . Can be used for analog synapses.

Definition at line 64379 of file NeuroML_v2.3.hxx.

Constructor & Destructor Documentation

◆ ContinuousProjection() [1/2]

neuroml2::ContinuousProjection::ContinuousProjection	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

Definition at line 46523 of file NeuroML_v2.3.cxx.

◆ ContinuousProjection() [2/2]

neuroml2::ContinuousProjection::ContinuousProjection	(	const ContinuousProjection &	x,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

Definition at line 46512 of file NeuroML_v2.3.cxx.

Member Function Documentation

◆ _clone()

ContinuousProjection * neuroml2::ContinuousProjection::_clone	(	::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)		const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns: A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented from neuroml2::BaseProjection.

Definition at line 46588 of file NeuroML_v2.3.cxx.

◆ continuousConnection() [1/3]

ContinuousProjection::continuousConnection_sequence & neuroml2::ContinuousProjection::continuousConnection ( )

Return a read-write reference to the element sequence.

Returns: A reference to the sequence container.

Definition at line 16121 of file NeuroML_v2.3.cxx.

◆ continuousConnection() [2/3]

const ContinuousProjection::continuousConnection_sequence & neuroml2::ContinuousProjection::continuousConnection ( ) const

Return a read-only (constant) reference to the element sequence.

Returns: A constant reference to the sequence container.

Definition at line 16115 of file NeuroML_v2.3.cxx.

◆ continuousConnection() [3/3]

void neuroml2::ContinuousProjection::continuousConnection ( const continuousConnection_sequence & s )

Copy elements from a given sequence.

Parameters

s	A sequence to copy elements from.

For each element in s this function makes a copy and adds it to the sequence. Note that this operation completely changes the sequence and all old elements will be lost.

Definition at line 16127 of file NeuroML_v2.3.cxx.

◆ continuousConnectionInstance() [1/3]

ContinuousProjection::continuousConnectionInstance_sequence & neuroml2::ContinuousProjection::continuousConnectionInstance ( )

Return a read-write reference to the element sequence.

Returns: A reference to the sequence container.

Definition at line 16139 of file NeuroML_v2.3.cxx.

◆ continuousConnectionInstance() [2/3]

const ContinuousProjection::continuousConnectionInstance_sequence & neuroml2::ContinuousProjection::continuousConnectionInstance ( ) const

Return a read-only (constant) reference to the element sequence.

Returns: A constant reference to the sequence container.

Definition at line 16133 of file NeuroML_v2.3.cxx.

◆ continuousConnectionInstance() [3/3]

void neuroml2::ContinuousProjection::continuousConnectionInstance ( const continuousConnectionInstance_sequence & s )

Copy elements from a given sequence.

Parameters

s	A sequence to copy elements from.

For each element in s this function makes a copy and adds it to the sequence. Note that this operation completely changes the sequence and all old elements will be lost.

Definition at line 16145 of file NeuroML_v2.3.cxx.

◆ continuousConnectionInstanceW() [1/3]

ContinuousProjection::continuousConnectionInstanceW_sequence & neuroml2::ContinuousProjection::continuousConnectionInstanceW ( )

Return a read-write reference to the element sequence.

Returns: A reference to the sequence container.

Definition at line 16157 of file NeuroML_v2.3.cxx.

◆ continuousConnectionInstanceW() [2/3]

const ContinuousProjection::continuousConnectionInstanceW_sequence & neuroml2::ContinuousProjection::continuousConnectionInstanceW ( ) const

Return a read-only (constant) reference to the element sequence.

Returns: A constant reference to the sequence container.

Definition at line 16151 of file NeuroML_v2.3.cxx.

◆ continuousConnectionInstanceW() [3/3]

void neuroml2::ContinuousProjection::continuousConnectionInstanceW ( const continuousConnectionInstanceW_sequence & s )

Copy elements from a given sequence.

Parameters

s	A sequence to copy elements from.

For each element in s this function makes a copy and adds it to the sequence. Note that this operation completely changes the sequence and all old elements will be lost.

Definition at line 16163 of file NeuroML_v2.3.cxx.

◆ operator=()

ContinuousProjection & neuroml2::ContinuousProjection::operator= ( const ContinuousProjection & x )

Copy assignment operator.

Parameters

x	An instance to make a copy of.

Returns: A reference to itself.

For polymorphic object models use the _clone function instead.

Definition at line 46595 of file NeuroML_v2.3.cxx.

The documentation for this class was generated from the following files:

src/NeuroML_v2.3.hxx
src/NeuroML_v2.3.cxx

continuousConnection

continuousConnectionInstance

continuousConnectionInstanceW

Constructors

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ContinuousProjection() [1/2]

◆ ContinuousProjection() [2/2]

Member Function Documentation

◆ _clone()

◆ continuousConnection() [1/3]

◆ continuousConnection() [2/3]

◆ continuousConnection() [3/3]

◆ continuousConnectionInstance() [1/3]

◆ continuousConnectionInstance() [2/3]

◆ continuousConnectionInstance() [3/3]

◆ continuousConnectionInstanceW() [1/3]

◆ continuousConnectionInstanceW() [2/3]

◆ continuousConnectionInstanceW() [3/3]

◆ operator=()
