Class corresponding to the ElectricalProjection schema type. More...

#include <NeuroML_v2.3.hxx>

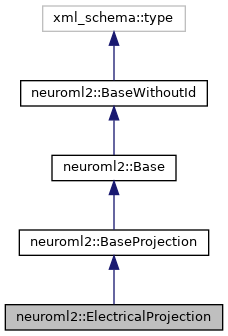

Inheritance diagram for neuroml2::ElectricalProjection:

Collaboration diagram for neuroml2::ElectricalProjection:

electricalConnection
Accessor and modifier functions for the electricalConnection sequence element.
typedef ::neuroml2::ElectricalConnection	electricalConnection_type
	Element type.

typedef ::xsd::cxx::tree::sequence< electricalConnection_type >	electricalConnection_sequence
	Element sequence container type.

typedef electricalConnection_sequence::iterator	electricalConnection_iterator
	Element iterator type.

typedef electricalConnection_sequence::const_iterator	electricalConnection_const_iterator
	Element constant iterator type.

typedef ::xsd::cxx::tree::traits< electricalConnection_type, char >	electricalConnection_traits
	Element traits type.

const electricalConnection_sequence &	electricalConnection () const
	Return a read-only (constant) reference to the element sequence. More...

electricalConnection_sequence &	electricalConnection ()
	Return a read-write reference to the element sequence. More...

void	electricalConnection (const electricalConnection_sequence &s)
	Copy elements from a given sequence. More...

electricalConnectionInstance
Accessor and modifier functions for the electricalConnectionInstance sequence element.
typedef ::neuroml2::ElectricalConnectionInstance	electricalConnectionInstance_type
	Element type.

typedef ::xsd::cxx::tree::sequence< electricalConnectionInstance_type >	electricalConnectionInstance_sequence
	Element sequence container type.

typedef electricalConnectionInstance_sequence::iterator	electricalConnectionInstance_iterator
	Element iterator type.

typedef electricalConnectionInstance_sequence::const_iterator	electricalConnectionInstance_const_iterator
	Element constant iterator type.

typedef ::xsd::cxx::tree::traits< electricalConnectionInstance_type, char >	electricalConnectionInstance_traits
	Element traits type.

const electricalConnectionInstance_sequence &	electricalConnectionInstance () const
	Return a read-only (constant) reference to the element sequence. More...

electricalConnectionInstance_sequence &	electricalConnectionInstance ()
	Return a read-write reference to the element sequence. More...

void	electricalConnectionInstance (const electricalConnectionInstance_sequence &s)
	Copy elements from a given sequence. More...

electricalConnectionInstanceW
Accessor and modifier functions for the electricalConnectionInstanceW sequence element.
typedef ::neuroml2::ElectricalConnectionInstanceW	electricalConnectionInstanceW_type
	Element type.

typedef ::xsd::cxx::tree::sequence< electricalConnectionInstanceW_type >	electricalConnectionInstanceW_sequence
	Element sequence container type.

typedef electricalConnectionInstanceW_sequence::iterator	electricalConnectionInstanceW_iterator
	Element iterator type.

typedef electricalConnectionInstanceW_sequence::const_iterator	electricalConnectionInstanceW_const_iterator
	Element constant iterator type.

typedef ::xsd::cxx::tree::traits< electricalConnectionInstanceW_type, char >	electricalConnectionInstanceW_traits
	Element traits type.

const electricalConnectionInstanceW_sequence &	electricalConnectionInstanceW () const
	Return a read-only (constant) reference to the element sequence. More...

electricalConnectionInstanceW_sequence &	electricalConnectionInstanceW ()
	Return a read-write reference to the element sequence. More...

void	electricalConnectionInstanceW (const electricalConnectionInstanceW_sequence &s)
	Copy elements from a given sequence. More...

Constructors
	ElectricalProjection (const id_type &, const presynapticPopulation_type &, const postsynapticPopulation_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	ElectricalProjection (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	ElectricalProjection (const ElectricalProjection &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual ElectricalProjection *	_clone (::xml_schema::flags f=0, ::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...

ElectricalProjection &	operator= (const ElectricalProjection &x)
	Copy assignment operator. More...

virtual	~ElectricalProjection ()
	Destructor.

Additional Inherited Members
Public Types inherited from neuroml2::BaseProjection
typedef ::neuroml2::NmlId	presynapticPopulation_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< presynapticPopulation_type, char >	presynapticPopulation_traits
	Attribute traits type.

typedef ::neuroml2::NmlId	postsynapticPopulation_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< postsynapticPopulation_type, char >	postsynapticPopulation_traits
	Attribute traits type.

Public Types inherited from neuroml2::Base
typedef ::neuroml2::NmlId	id_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< id_type, char >	id_traits
	Attribute traits type.

Public Member Functions inherited from neuroml2::BaseProjection
const presynapticPopulation_type &	presynapticPopulation () const
	Return a read-only (constant) reference to the attribute. More...

presynapticPopulation_type &	presynapticPopulation ()
	Return a read-write reference to the attribute. More...

void	presynapticPopulation (const presynapticPopulation_type &x)
	Set the attribute value. More...

void	presynapticPopulation (::std::unique_ptr< presynapticPopulation_type > p)
	Set the attribute value without copying. More...

const postsynapticPopulation_type &	postsynapticPopulation () const
	Return a read-only (constant) reference to the attribute. More...

postsynapticPopulation_type &	postsynapticPopulation ()
	Return a read-write reference to the attribute. More...

void	postsynapticPopulation (const postsynapticPopulation_type &x)
	Set the attribute value. More...

void	postsynapticPopulation (::std::unique_ptr< postsynapticPopulation_type > p)
	Set the attribute value without copying. More...

	BaseProjection (const id_type &, const presynapticPopulation_type &, const postsynapticPopulation_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseProjection (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseProjection (const BaseProjection &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

BaseProjection &	operator= (const BaseProjection &x)
	Copy assignment operator. More...

virtual	~BaseProjection ()
	Destructor.

Public Member Functions inherited from neuroml2::Base
const id_type &	id () const
	Return a read-only (constant) reference to the attribute. More...

id_type &	id ()
	Return a read-write reference to the attribute. More...

void	id (const id_type &x)
	Set the attribute value. More...

void	id (::std::unique_ptr< id_type > p)
	Set the attribute value without copying. More...

	Base (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	Base (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	Base (const Base &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

Base &	operator= (const Base &x)
	Copy assignment operator. More...

virtual	~Base ()
	Destructor.

Public Member Functions inherited from neuroml2::BaseWithoutId
	BaseWithoutId ()
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseWithoutId (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseWithoutId (const ::xercesc::DOMAttr &a, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM attribute. More...

	BaseWithoutId (const ::std::string &s, const ::xercesc::DOMElement e, ::xml_schema::flags f=0, ::xml_schema::container c=0)
	Create an instance from a string fragment. More...

	BaseWithoutId (const BaseWithoutId &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual	~BaseWithoutId ()
	Destructor.

Detailed Description

Class corresponding to the ElectricalProjection schema type.

A projection between presynapticPopulation to another postsynapticPopulation through gap junctions.

Definition at line 63677 of file NeuroML_v2.3.hxx.

Constructor & Destructor Documentation

◆ ElectricalProjection() [1/2]

neuroml2::ElectricalProjection::ElectricalProjection	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

Definition at line 46115 of file NeuroML_v2.3.cxx.

◆ ElectricalProjection() [2/2]

neuroml2::ElectricalProjection::ElectricalProjection	(	const ElectricalProjection &	x,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

Definition at line 46104 of file NeuroML_v2.3.cxx.

Member Function Documentation

◆ _clone()

ElectricalProjection * neuroml2::ElectricalProjection::_clone	(	::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)		const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns: A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented from neuroml2::BaseProjection.

Definition at line 46180 of file NeuroML_v2.3.cxx.

◆ electricalConnection() [1/3]

ElectricalProjection::electricalConnection_sequence & neuroml2::ElectricalProjection::electricalConnection ( )

Return a read-write reference to the element sequence.

Returns: A reference to the sequence container.

Definition at line 16009 of file NeuroML_v2.3.cxx.

◆ electricalConnection() [2/3]

const ElectricalProjection::electricalConnection_sequence & neuroml2::ElectricalProjection::electricalConnection ( ) const

Return a read-only (constant) reference to the element sequence.

Returns: A constant reference to the sequence container.

Definition at line 16003 of file NeuroML_v2.3.cxx.

◆ electricalConnection() [3/3]

void neuroml2::ElectricalProjection::electricalConnection ( const electricalConnection_sequence & s )

Copy elements from a given sequence.

Parameters

s	A sequence to copy elements from.

For each element in s this function makes a copy and adds it to the sequence. Note that this operation completely changes the sequence and all old elements will be lost.

Definition at line 16015 of file NeuroML_v2.3.cxx.

◆ electricalConnectionInstance() [1/3]

ElectricalProjection::electricalConnectionInstance_sequence & neuroml2::ElectricalProjection::electricalConnectionInstance ( )

Return a read-write reference to the element sequence.

Returns: A reference to the sequence container.

Definition at line 16027 of file NeuroML_v2.3.cxx.

◆ electricalConnectionInstance() [2/3]

const ElectricalProjection::electricalConnectionInstance_sequence & neuroml2::ElectricalProjection::electricalConnectionInstance ( ) const

Return a read-only (constant) reference to the element sequence.

Returns: A constant reference to the sequence container.

Definition at line 16021 of file NeuroML_v2.3.cxx.

◆ electricalConnectionInstance() [3/3]

void neuroml2::ElectricalProjection::electricalConnectionInstance ( const electricalConnectionInstance_sequence & s )

Copy elements from a given sequence.

Parameters

s	A sequence to copy elements from.

For each element in s this function makes a copy and adds it to the sequence. Note that this operation completely changes the sequence and all old elements will be lost.

Definition at line 16033 of file NeuroML_v2.3.cxx.

◆ electricalConnectionInstanceW() [1/3]

ElectricalProjection::electricalConnectionInstanceW_sequence & neuroml2::ElectricalProjection::electricalConnectionInstanceW ( )

Return a read-write reference to the element sequence.

Returns: A reference to the sequence container.

Definition at line 16045 of file NeuroML_v2.3.cxx.

◆ electricalConnectionInstanceW() [2/3]

const ElectricalProjection::electricalConnectionInstanceW_sequence & neuroml2::ElectricalProjection::electricalConnectionInstanceW ( ) const

Return a read-only (constant) reference to the element sequence.

Returns: A constant reference to the sequence container.

Definition at line 16039 of file NeuroML_v2.3.cxx.

◆ electricalConnectionInstanceW() [3/3]

void neuroml2::ElectricalProjection::electricalConnectionInstanceW ( const electricalConnectionInstanceW_sequence & s )

Copy elements from a given sequence.

Parameters

s	A sequence to copy elements from.

For each element in s this function makes a copy and adds it to the sequence. Note that this operation completely changes the sequence and all old elements will be lost.

Definition at line 16051 of file NeuroML_v2.3.cxx.

◆ operator=()

ElectricalProjection & neuroml2::ElectricalProjection::operator= ( const ElectricalProjection & x )

Copy assignment operator.

Parameters

x	An instance to make a copy of.

Returns: A reference to itself.

For polymorphic object models use the _clone function instead.

Definition at line 46187 of file NeuroML_v2.3.cxx.

The documentation for this class was generated from the following files:

src/NeuroML_v2.3.hxx
src/NeuroML_v2.3.cxx

electricalConnection

electricalConnectionInstance

electricalConnectionInstanceW

Constructors

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ElectricalProjection() [1/2]

◆ ElectricalProjection() [2/2]

Member Function Documentation

◆ _clone()

◆ electricalConnection() [1/3]

◆ electricalConnection() [2/3]

◆ electricalConnection() [3/3]

◆ electricalConnectionInstance() [1/3]

◆ electricalConnectionInstance() [2/3]

◆ electricalConnectionInstance() [3/3]

◆ electricalConnectionInstanceW() [1/3]

◆ electricalConnectionInstanceW() [2/3]

◆ electricalConnectionInstanceW() [3/3]

◆ operator=()
