Class corresponding to the BaseConnectionOldFormat schema type. More...

#include <NeuroML_v2.3.hxx>

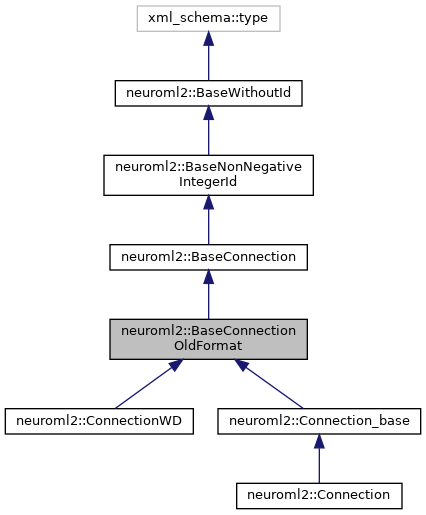

Inheritance diagram for neuroml2::BaseConnectionOldFormat:

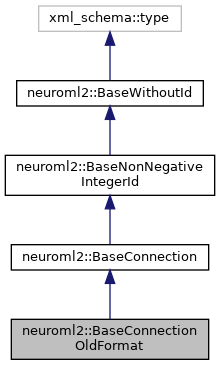

Collaboration diagram for neuroml2::BaseConnectionOldFormat:

preCellId
Accessor and modifier functions for the preCellId required attribute.
typedef ::neuroml2::Nml2PopulationReferencePath	preCellId_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< preCellId_type, char >	preCellId_traits
	Attribute traits type.

const preCellId_type &	preCellId () const
	Return a read-only (constant) reference to the attribute. More...

preCellId_type &	preCellId ()
	Return a read-write reference to the attribute. More...

void	preCellId (const preCellId_type &x)
	Set the attribute value. More...

void	preCellId (::std::unique_ptr< preCellId_type > p)
	Set the attribute value without copying. More...

preSegmentId
Accessor and modifier functions for the preSegmentId optional attribute with a default value.
typedef ::neuroml2::NonNegativeInteger	preSegmentId_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< preSegmentId_type, char >	preSegmentId_traits
	Attribute traits type.

const preSegmentId_type &	preSegmentId () const
	Return a read-only (constant) reference to the attribute. More...

preSegmentId_type &	preSegmentId ()
	Return a read-write reference to the attribute. More...

void	preSegmentId (const preSegmentId_type &x)
	Set the attribute value. More...

void	preSegmentId (::std::unique_ptr< preSegmentId_type > p)
	Set the attribute value without copying. More...

static preSegmentId_type	preSegmentId_default_value ()
	Return the default value for the attribute. More...

preFractionAlong
Accessor and modifier functions for the preFractionAlong optional attribute with a default value.
typedef ::neuroml2::ZeroToOne	preFractionAlong_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< preFractionAlong_type, char >	preFractionAlong_traits
	Attribute traits type.

const preFractionAlong_type &	preFractionAlong () const
	Return a read-only (constant) reference to the attribute. More...

preFractionAlong_type &	preFractionAlong ()
	Return a read-write reference to the attribute. More...

void	preFractionAlong (const preFractionAlong_type &x)
	Set the attribute value. More...

void	preFractionAlong (::std::unique_ptr< preFractionAlong_type > p)
	Set the attribute value without copying. More...

static preFractionAlong_type	preFractionAlong_default_value ()
	Return the default value for the attribute. More...

postCellId
Accessor and modifier functions for the postCellId required attribute.
typedef ::neuroml2::Nml2PopulationReferencePath	postCellId_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< postCellId_type, char >	postCellId_traits
	Attribute traits type.

const postCellId_type &	postCellId () const
	Return a read-only (constant) reference to the attribute. More...

postCellId_type &	postCellId ()
	Return a read-write reference to the attribute. More...

void	postCellId (const postCellId_type &x)
	Set the attribute value. More...

void	postCellId (::std::unique_ptr< postCellId_type > p)
	Set the attribute value without copying. More...

postSegmentId
Accessor and modifier functions for the postSegmentId optional attribute with a default value.
typedef ::neuroml2::NonNegativeInteger	postSegmentId_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< postSegmentId_type, char >	postSegmentId_traits
	Attribute traits type.

const postSegmentId_type &	postSegmentId () const
	Return a read-only (constant) reference to the attribute. More...

postSegmentId_type &	postSegmentId ()
	Return a read-write reference to the attribute. More...

void	postSegmentId (const postSegmentId_type &x)
	Set the attribute value. More...

void	postSegmentId (::std::unique_ptr< postSegmentId_type > p)
	Set the attribute value without copying. More...

static postSegmentId_type	postSegmentId_default_value ()
	Return the default value for the attribute. More...

postFractionAlong
Accessor and modifier functions for the postFractionAlong optional attribute with a default value.
typedef ::neuroml2::ZeroToOne	postFractionAlong_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< postFractionAlong_type, char >	postFractionAlong_traits
	Attribute traits type.

const postFractionAlong_type &	postFractionAlong () const
	Return a read-only (constant) reference to the attribute. More...

postFractionAlong_type &	postFractionAlong ()
	Return a read-write reference to the attribute. More...

void	postFractionAlong (const postFractionAlong_type &x)
	Set the attribute value. More...

void	postFractionAlong (::std::unique_ptr< postFractionAlong_type > p)
	Set the attribute value without copying. More...

static postFractionAlong_type	postFractionAlong_default_value ()
	Return the default value for the attribute. More...

Constructors
	BaseConnectionOldFormat (const id_type &, const preCellId_type &, const postCellId_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseConnectionOldFormat (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseConnectionOldFormat (const BaseConnectionOldFormat &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual BaseConnectionOldFormat *	_clone (::xml_schema::flags f=0, ::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...

BaseConnectionOldFormat &	operator= (const BaseConnectionOldFormat &x)
	Copy assignment operator. More...

virtual	~BaseConnectionOldFormat ()
	Destructor.

Additional Inherited Members
Public Types inherited from neuroml2::BaseConnection
typedef ::neuroml2::NeuroLexId	neuroLexId_type
	Attribute type.

typedef ::xsd::cxx::tree::optional< neuroLexId_type >	neuroLexId_optional
	Attribute optional container type.

typedef ::xsd::cxx::tree::traits< neuroLexId_type, char >	neuroLexId_traits
	Attribute traits type.

Public Types inherited from neuroml2::BaseNonNegativeIntegerId
typedef ::neuroml2::NonNegativeInteger	id_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< id_type, char >	id_traits
	Attribute traits type.

Public Member Functions inherited from neuroml2::BaseConnection
const neuroLexId_optional &	neuroLexId () const
	Return a read-only (constant) reference to the attribute container. More...

neuroLexId_optional &	neuroLexId ()
	Return a read-write reference to the attribute container. More...

void	neuroLexId (const neuroLexId_type &x)
	Set the attribute value. More...

void	neuroLexId (const neuroLexId_optional &x)
	Set the attribute value. More...

void	neuroLexId (::std::unique_ptr< neuroLexId_type > p)
	Set the attribute value without copying. More...

	BaseConnection (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseConnection (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseConnection (const BaseConnection &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

BaseConnection &	operator= (const BaseConnection &x)
	Copy assignment operator. More...

virtual	~BaseConnection ()
	Destructor.

Public Member Functions inherited from neuroml2::BaseNonNegativeIntegerId
const id_type &	id () const
	Return a read-only (constant) reference to the attribute. More...

id_type &	id ()
	Return a read-write reference to the attribute. More...

void	id (const id_type &x)
	Set the attribute value. More...

void	id (::std::unique_ptr< id_type > p)
	Set the attribute value without copying. More...

	BaseNonNegativeIntegerId (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseNonNegativeIntegerId (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseNonNegativeIntegerId (const BaseNonNegativeIntegerId &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

BaseNonNegativeIntegerId &	operator= (const BaseNonNegativeIntegerId &x)
	Copy assignment operator. More...

virtual	~BaseNonNegativeIntegerId ()
	Destructor.

Public Member Functions inherited from neuroml2::BaseWithoutId
	BaseWithoutId ()
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseWithoutId (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseWithoutId (const ::xercesc::DOMAttr &a, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM attribute. More...

	BaseWithoutId (const ::std::string &s, const ::xercesc::DOMElement e, ::xml_schema::flags f=0, ::xml_schema::container c=0)
	Create an instance from a string fragment. More...

	BaseWithoutId (const BaseWithoutId &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual	~BaseWithoutId ()
	Destructor.

Detailed Description

Class corresponding to the BaseConnectionOldFormat schema type.

Base of all synaptic connections with preCellId, postSegmentId, etc. Note: this is not the best name for these attributes, since Id is superfluous, hence BaseConnectionNewFormat

Definition at line 62399 of file NeuroML_v2.3.hxx.

Constructor & Destructor Documentation

◆ BaseConnectionOldFormat() [1/2]

neuroml2::BaseConnectionOldFormat::BaseConnectionOldFormat	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

Definition at line 45549 of file NeuroML_v2.3.cxx.

◆ BaseConnectionOldFormat() [2/2]

neuroml2::BaseConnectionOldFormat::BaseConnectionOldFormat	(	const BaseConnectionOldFormat &	x,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

Definition at line 45535 of file NeuroML_v2.3.cxx.

Member Function Documentation

◆ _clone()

BaseConnectionOldFormat * neuroml2::BaseConnectionOldFormat::_clone	(	::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)		const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns: A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented from neuroml2::BaseConnection.

Reimplemented in neuroml2::Connection, neuroml2::ConnectionWD, and neuroml2::Connection_base.

Definition at line 45654 of file NeuroML_v2.3.cxx.

◆ operator=()

BaseConnectionOldFormat & neuroml2::BaseConnectionOldFormat::operator= ( const BaseConnectionOldFormat & x )

Copy assignment operator.

Parameters

x	An instance to make a copy of.

Returns: A reference to itself.

For polymorphic object models use the _clone function instead.

Definition at line 45661 of file NeuroML_v2.3.cxx.

◆ postCellId() [1/4]

BaseConnectionOldFormat::postCellId_type & neuroml2::BaseConnectionOldFormat::postCellId ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 15699 of file NeuroML_v2.3.cxx.

◆ postCellId() [2/4]

const BaseConnectionOldFormat::postCellId_type & neuroml2::BaseConnectionOldFormat::postCellId ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 15693 of file NeuroML_v2.3.cxx.

◆ postCellId() [3/4]

void neuroml2::BaseConnectionOldFormat::postCellId ( ::std::unique_ptr< postCellId_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 15711 of file NeuroML_v2.3.cxx.

◆ postCellId() [4/4]

void neuroml2::BaseConnectionOldFormat::postCellId ( const postCellId_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 15705 of file NeuroML_v2.3.cxx.

◆ postFractionAlong() [1/4]

BaseConnectionOldFormat::postFractionAlong_type & neuroml2::BaseConnectionOldFormat::postFractionAlong ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 15753 of file NeuroML_v2.3.cxx.

◆ postFractionAlong() [2/4]

const BaseConnectionOldFormat::postFractionAlong_type & neuroml2::BaseConnectionOldFormat::postFractionAlong ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 15747 of file NeuroML_v2.3.cxx.

◆ postFractionAlong() [3/4]

void neuroml2::BaseConnectionOldFormat::postFractionAlong ( ::std::unique_ptr< postFractionAlong_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 15765 of file NeuroML_v2.3.cxx.

◆ postFractionAlong() [4/4]

void neuroml2::BaseConnectionOldFormat::postFractionAlong ( const postFractionAlong_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 15759 of file NeuroML_v2.3.cxx.

◆ postFractionAlong_default_value()

BaseConnectionOldFormat::postFractionAlong_type neuroml2::BaseConnectionOldFormat::postFractionAlong_default_value ( )

static

Return the default value for the attribute.

Returns: The attribute's default value.

Definition at line 15771 of file NeuroML_v2.3.cxx.

◆ postSegmentId() [1/4]

BaseConnectionOldFormat::postSegmentId_type & neuroml2::BaseConnectionOldFormat::postSegmentId ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 15723 of file NeuroML_v2.3.cxx.

◆ postSegmentId() [2/4]

const BaseConnectionOldFormat::postSegmentId_type & neuroml2::BaseConnectionOldFormat::postSegmentId ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 15717 of file NeuroML_v2.3.cxx.

◆ postSegmentId() [3/4]

void neuroml2::BaseConnectionOldFormat::postSegmentId ( ::std::unique_ptr< postSegmentId_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 15735 of file NeuroML_v2.3.cxx.

◆ postSegmentId() [4/4]

void neuroml2::BaseConnectionOldFormat::postSegmentId ( const postSegmentId_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 15729 of file NeuroML_v2.3.cxx.

◆ postSegmentId_default_value()

BaseConnectionOldFormat::postSegmentId_type neuroml2::BaseConnectionOldFormat::postSegmentId_default_value ( )

static

Return the default value for the attribute.

Returns: The attribute's default value.

Definition at line 15741 of file NeuroML_v2.3.cxx.

◆ preCellId() [1/4]

BaseConnectionOldFormat::preCellId_type & neuroml2::BaseConnectionOldFormat::preCellId ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 15615 of file NeuroML_v2.3.cxx.

◆ preCellId() [2/4]

const BaseConnectionOldFormat::preCellId_type & neuroml2::BaseConnectionOldFormat::preCellId ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 15609 of file NeuroML_v2.3.cxx.

◆ preCellId() [3/4]

void neuroml2::BaseConnectionOldFormat::preCellId ( ::std::unique_ptr< preCellId_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 15627 of file NeuroML_v2.3.cxx.

◆ preCellId() [4/4]

void neuroml2::BaseConnectionOldFormat::preCellId ( const preCellId_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 15621 of file NeuroML_v2.3.cxx.

◆ preFractionAlong() [1/4]

BaseConnectionOldFormat::preFractionAlong_type & neuroml2::BaseConnectionOldFormat::preFractionAlong ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 15669 of file NeuroML_v2.3.cxx.

◆ preFractionAlong() [2/4]

const BaseConnectionOldFormat::preFractionAlong_type & neuroml2::BaseConnectionOldFormat::preFractionAlong ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 15663 of file NeuroML_v2.3.cxx.

◆ preFractionAlong() [3/4]

void neuroml2::BaseConnectionOldFormat::preFractionAlong ( ::std::unique_ptr< preFractionAlong_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 15681 of file NeuroML_v2.3.cxx.

◆ preFractionAlong() [4/4]

void neuroml2::BaseConnectionOldFormat::preFractionAlong ( const preFractionAlong_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 15675 of file NeuroML_v2.3.cxx.

◆ preFractionAlong_default_value()

BaseConnectionOldFormat::preFractionAlong_type neuroml2::BaseConnectionOldFormat::preFractionAlong_default_value ( )

static

Return the default value for the attribute.

Returns: The attribute's default value.

Definition at line 15687 of file NeuroML_v2.3.cxx.

◆ preSegmentId() [1/4]

BaseConnectionOldFormat::preSegmentId_type & neuroml2::BaseConnectionOldFormat::preSegmentId ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 15639 of file NeuroML_v2.3.cxx.

◆ preSegmentId() [2/4]

const BaseConnectionOldFormat::preSegmentId_type & neuroml2::BaseConnectionOldFormat::preSegmentId ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 15633 of file NeuroML_v2.3.cxx.

◆ preSegmentId() [3/4]

void neuroml2::BaseConnectionOldFormat::preSegmentId ( ::std::unique_ptr< preSegmentId_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 15651 of file NeuroML_v2.3.cxx.

◆ preSegmentId() [4/4]

void neuroml2::BaseConnectionOldFormat::preSegmentId ( const preSegmentId_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 15645 of file NeuroML_v2.3.cxx.

◆ preSegmentId_default_value()

BaseConnectionOldFormat::preSegmentId_type neuroml2::BaseConnectionOldFormat::preSegmentId_default_value ( )

static

Return the default value for the attribute.

Returns: The attribute's default value.

Definition at line 15657 of file NeuroML_v2.3.cxx.

The documentation for this class was generated from the following files:

src/NeuroML_v2.3.hxx
src/NeuroML_v2.3.cxx

preCellId

preSegmentId

preFractionAlong

postCellId

postSegmentId

postFractionAlong

Constructors

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ BaseConnectionOldFormat() [1/2]

◆ BaseConnectionOldFormat() [2/2]

Member Function Documentation

◆ _clone()

◆ operator=()

◆ postCellId() [1/4]

◆ postCellId() [2/4]

◆ postCellId() [3/4]

◆ postCellId() [4/4]

◆ postFractionAlong() [1/4]

◆ postFractionAlong() [2/4]

◆ postFractionAlong() [3/4]

◆ postFractionAlong() [4/4]

◆ postFractionAlong_default_value()

◆ postSegmentId() [1/4]

◆ postSegmentId() [2/4]

◆ postSegmentId() [3/4]

◆ postSegmentId() [4/4]

◆ postSegmentId_default_value()

◆ preCellId() [1/4]

◆ preCellId() [2/4]

◆ preCellId() [3/4]

◆ preCellId() [4/4]

◆ preFractionAlong() [1/4]

◆ preFractionAlong() [2/4]

◆ preFractionAlong() [3/4]

◆ preFractionAlong() [4/4]

◆ preFractionAlong_default_value()

◆ preSegmentId() [1/4]

◆ preSegmentId() [2/4]

◆ preSegmentId() [3/4]

◆ preSegmentId() [4/4]

◆ preSegmentId_default_value()
