Class corresponding to the BaseConnection schema type. More...

#include <NeuroML_v2.3.hxx>

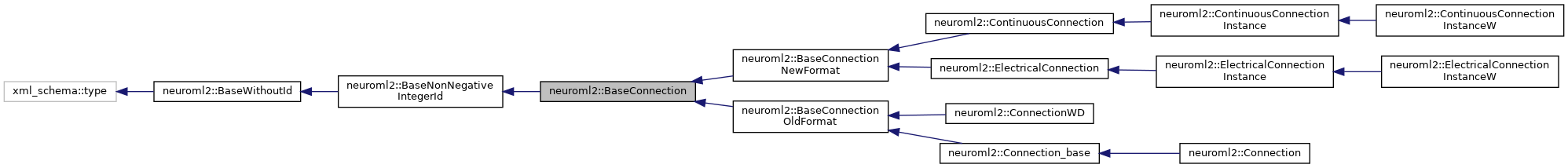

Inheritance diagram for neuroml2::BaseConnection:

Collaboration diagram for neuroml2::BaseConnection:

neuroLexId
Accessor and modifier functions for the neuroLexId optional attribute.
typedef ::neuroml2::NeuroLexId	neuroLexId_type
	Attribute type.

typedef ::xsd::cxx::tree::optional< neuroLexId_type >	neuroLexId_optional
	Attribute optional container type.

typedef ::xsd::cxx::tree::traits< neuroLexId_type, char >	neuroLexId_traits
	Attribute traits type.

const neuroLexId_optional &	neuroLexId () const
	Return a read-only (constant) reference to the attribute container. More...

neuroLexId_optional &	neuroLexId ()
	Return a read-write reference to the attribute container. More...

void	neuroLexId (const neuroLexId_type &x)
	Set the attribute value. More...

void	neuroLexId (const neuroLexId_optional &x)
	Set the attribute value. More...

void	neuroLexId (::std::unique_ptr< neuroLexId_type > p)
	Set the attribute value without copying. More...

Constructors
	BaseConnection (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseConnection (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseConnection (const BaseConnection &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual BaseConnection *	_clone (::xml_schema::flags f=0, ::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...

BaseConnection &	operator= (const BaseConnection &x)
	Copy assignment operator. More...

virtual	~BaseConnection ()
	Destructor.

Additional Inherited Members
Public Types inherited from neuroml2::BaseNonNegativeIntegerId
typedef ::neuroml2::NonNegativeInteger	id_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< id_type, char >	id_traits
	Attribute traits type.

Public Member Functions inherited from neuroml2::BaseNonNegativeIntegerId
const id_type &	id () const
	Return a read-only (constant) reference to the attribute. More...

id_type &	id ()
	Return a read-write reference to the attribute. More...

void	id (const id_type &x)
	Set the attribute value. More...

void	id (::std::unique_ptr< id_type > p)
	Set the attribute value without copying. More...

	BaseNonNegativeIntegerId (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseNonNegativeIntegerId (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseNonNegativeIntegerId (const BaseNonNegativeIntegerId &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

BaseNonNegativeIntegerId &	operator= (const BaseNonNegativeIntegerId &x)
	Copy assignment operator. More...

virtual	~BaseNonNegativeIntegerId ()
	Destructor.

Public Member Functions inherited from neuroml2::BaseWithoutId
	BaseWithoutId ()
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseWithoutId (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseWithoutId (const ::xercesc::DOMAttr &a, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM attribute. More...

	BaseWithoutId (const ::std::string &s, const ::xercesc::DOMElement e, ::xml_schema::flags f=0, ::xml_schema::container c=0)
	Create an instance from a string fragment. More...

	BaseWithoutId (const BaseWithoutId &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual	~BaseWithoutId ()
	Destructor.

Detailed Description

Class corresponding to the BaseConnection schema type.

Base of all synaptic connections (chemical/electrical/analog, etc.) inside projections

Definition at line 62218 of file NeuroML_v2.3.hxx.

Constructor & Destructor Documentation

◆ BaseConnection() [1/2]

neuroml2::BaseConnection::BaseConnection	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

Definition at line 45439 of file NeuroML_v2.3.cxx.

◆ BaseConnection() [2/2]

neuroml2::BaseConnection::BaseConnection	(	const BaseConnection &	x,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

Definition at line 45430 of file NeuroML_v2.3.cxx.

Member Function Documentation

◆ _clone()

BaseConnection * neuroml2::BaseConnection::_clone	(	::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)		const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns: A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented from neuroml2::BaseNonNegativeIntegerId.

Reimplemented in neuroml2::Connection, neuroml2::ContinuousConnectionInstanceW, neuroml2::ContinuousConnectionInstance, neuroml2::ContinuousConnection, neuroml2::ElectricalConnectionInstanceW, neuroml2::ElectricalConnectionInstance, neuroml2::ElectricalConnection, neuroml2::ConnectionWD, neuroml2::Connection_base, neuroml2::BaseConnectionNewFormat, and neuroml2::BaseConnectionOldFormat.

Definition at line 45475 of file NeuroML_v2.3.cxx.

◆ neuroLexId() [1/5]

BaseConnection::neuroLexId_optional & neuroml2::BaseConnection::neuroLexId ( )

Return a read-write reference to the attribute container.

Returns: A reference to the optional container.

Definition at line 15581 of file NeuroML_v2.3.cxx.

◆ neuroLexId() [2/5]

const BaseConnection::neuroLexId_optional & neuroml2::BaseConnection::neuroLexId ( ) const

Return a read-only (constant) reference to the attribute container.

Returns: A constant reference to the optional container.

Definition at line 15575 of file NeuroML_v2.3.cxx.

◆ neuroLexId() [3/5]

void neuroml2::BaseConnection::neuroLexId ( ::std::unique_ptr< neuroLexId_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 15599 of file NeuroML_v2.3.cxx.

◆ neuroLexId() [4/5]

void neuroml2::BaseConnection::neuroLexId ( const neuroLexId_optional & x )

Set the attribute value.

Parameters

x	An optional container with the new value to set.

If the value is present in x then this function makes a copy of this value and sets it as the new value of the attribute. Otherwise the attribute container is set the 'not present' state.

Definition at line 15593 of file NeuroML_v2.3.cxx.

◆ neuroLexId() [5/5]

void neuroml2::BaseConnection::neuroLexId ( const neuroLexId_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 15587 of file NeuroML_v2.3.cxx.

◆ operator=()

BaseConnection & neuroml2::BaseConnection::operator= ( const BaseConnection & x )

Copy assignment operator.

Parameters

x	An instance to make a copy of.

Returns: A reference to itself.

For polymorphic object models use the _clone function instead.

Definition at line 45482 of file NeuroML_v2.3.cxx.

The documentation for this class was generated from the following files:

src/NeuroML_v2.3.hxx
src/NeuroML_v2.3.cxx
