Class corresponding to the Connection schema type. More...

#include <NeuroML_custom.hxx>

Inheritance diagram for neuroml2::Connection:

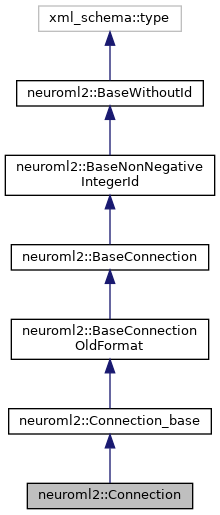

Collaboration diagram for neuroml2::Connection:

Public Member Functions
unsigned	get_pre_cell_id () const

unsigned	get_post_cell_id () const

Public Member Functions inherited from neuroml2::Connection_base
	Connection_base (const id_type &, const preCellId_type &, const postCellId_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	Connection_base (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	Connection_base (const Connection_base &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual	~Connection_base ()
	Destructor.

Public Member Functions inherited from neuroml2::BaseConnectionOldFormat
const preCellId_type &	preCellId () const
	Return a read-only (constant) reference to the attribute. More...

preCellId_type &	preCellId ()
	Return a read-write reference to the attribute. More...

void	preCellId (const preCellId_type &x)
	Set the attribute value. More...

void	preCellId (::std::unique_ptr< preCellId_type > p)
	Set the attribute value without copying. More...

const preSegmentId_type &	preSegmentId () const
	Return a read-only (constant) reference to the attribute. More...

preSegmentId_type &	preSegmentId ()
	Return a read-write reference to the attribute. More...

void	preSegmentId (const preSegmentId_type &x)
	Set the attribute value. More...

void	preSegmentId (::std::unique_ptr< preSegmentId_type > p)
	Set the attribute value without copying. More...

const preFractionAlong_type &	preFractionAlong () const
	Return a read-only (constant) reference to the attribute. More...

preFractionAlong_type &	preFractionAlong ()
	Return a read-write reference to the attribute. More...

void	preFractionAlong (const preFractionAlong_type &x)
	Set the attribute value. More...

void	preFractionAlong (::std::unique_ptr< preFractionAlong_type > p)
	Set the attribute value without copying. More...

const postCellId_type &	postCellId () const
	Return a read-only (constant) reference to the attribute. More...

postCellId_type &	postCellId ()
	Return a read-write reference to the attribute. More...

void	postCellId (const postCellId_type &x)
	Set the attribute value. More...

void	postCellId (::std::unique_ptr< postCellId_type > p)
	Set the attribute value without copying. More...

const postSegmentId_type &	postSegmentId () const
	Return a read-only (constant) reference to the attribute. More...

postSegmentId_type &	postSegmentId ()
	Return a read-write reference to the attribute. More...

void	postSegmentId (const postSegmentId_type &x)
	Set the attribute value. More...

void	postSegmentId (::std::unique_ptr< postSegmentId_type > p)
	Set the attribute value without copying. More...

const postFractionAlong_type &	postFractionAlong () const
	Return a read-only (constant) reference to the attribute. More...

postFractionAlong_type &	postFractionAlong ()
	Return a read-write reference to the attribute. More...

void	postFractionAlong (const postFractionAlong_type &x)
	Set the attribute value. More...

void	postFractionAlong (::std::unique_ptr< postFractionAlong_type > p)
	Set the attribute value without copying. More...

	BaseConnectionOldFormat (const id_type &, const preCellId_type &, const postCellId_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseConnectionOldFormat (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseConnectionOldFormat (const BaseConnectionOldFormat &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

BaseConnectionOldFormat &	operator= (const BaseConnectionOldFormat &x)
	Copy assignment operator. More...

virtual	~BaseConnectionOldFormat ()
	Destructor.

Public Member Functions inherited from neuroml2::BaseConnection
const neuroLexId_optional &	neuroLexId () const
	Return a read-only (constant) reference to the attribute container. More...

neuroLexId_optional &	neuroLexId ()
	Return a read-write reference to the attribute container. More...

void	neuroLexId (const neuroLexId_type &x)
	Set the attribute value. More...

void	neuroLexId (const neuroLexId_optional &x)
	Set the attribute value. More...

void	neuroLexId (::std::unique_ptr< neuroLexId_type > p)
	Set the attribute value without copying. More...

	BaseConnection (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseConnection (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseConnection (const BaseConnection &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

BaseConnection &	operator= (const BaseConnection &x)
	Copy assignment operator. More...

virtual	~BaseConnection ()
	Destructor.

Public Member Functions inherited from neuroml2::BaseNonNegativeIntegerId
const id_type &	id () const
	Return a read-only (constant) reference to the attribute. More...

id_type &	id ()
	Return a read-write reference to the attribute. More...

void	id (const id_type &x)
	Set the attribute value. More...

void	id (::std::unique_ptr< id_type > p)
	Set the attribute value without copying. More...

	BaseNonNegativeIntegerId (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseNonNegativeIntegerId (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseNonNegativeIntegerId (const BaseNonNegativeIntegerId &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

BaseNonNegativeIntegerId &	operator= (const BaseNonNegativeIntegerId &x)
	Copy assignment operator. More...

virtual	~BaseNonNegativeIntegerId ()
	Destructor.

Public Member Functions inherited from neuroml2::BaseWithoutId
	BaseWithoutId ()
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseWithoutId (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseWithoutId (const ::xercesc::DOMAttr &a, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM attribute. More...

	BaseWithoutId (const ::std::string &s, const ::xercesc::DOMElement e, ::xml_schema::flags f=0, ::xml_schema::container c=0)
	Create an instance from a string fragment. More...

	BaseWithoutId (const BaseWithoutId &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual	~BaseWithoutId ()
	Destructor.

Protected Member Functions
unsigned	_get_cell_id (const std::string &id_string) const

Constructors
	Connection (const id_type &, const preCellId_type &, const postCellId_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	Connection (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	Connection (const Connection &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual Connection *	_clone (::xml_schema::flags f=0, ::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...

virtual	~Connection ()
	Destructor.

Additional Inherited Members
Public Types inherited from neuroml2::BaseConnectionOldFormat
typedef ::neuroml2::Nml2PopulationReferencePath	preCellId_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< preCellId_type, char >	preCellId_traits
	Attribute traits type.

typedef ::neuroml2::NonNegativeInteger	preSegmentId_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< preSegmentId_type, char >	preSegmentId_traits
	Attribute traits type.

typedef ::neuroml2::ZeroToOne	preFractionAlong_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< preFractionAlong_type, char >	preFractionAlong_traits
	Attribute traits type.

typedef ::neuroml2::Nml2PopulationReferencePath	postCellId_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< postCellId_type, char >	postCellId_traits
	Attribute traits type.

typedef ::neuroml2::NonNegativeInteger	postSegmentId_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< postSegmentId_type, char >	postSegmentId_traits
	Attribute traits type.

typedef ::neuroml2::ZeroToOne	postFractionAlong_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< postFractionAlong_type, char >	postFractionAlong_traits
	Attribute traits type.

Public Types inherited from neuroml2::BaseConnection
typedef ::neuroml2::NeuroLexId	neuroLexId_type
	Attribute type.

typedef ::xsd::cxx::tree::optional< neuroLexId_type >	neuroLexId_optional
	Attribute optional container type.

typedef ::xsd::cxx::tree::traits< neuroLexId_type, char >	neuroLexId_traits
	Attribute traits type.

Public Types inherited from neuroml2::BaseNonNegativeIntegerId
typedef ::neuroml2::NonNegativeInteger	id_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< id_type, char >	id_traits
	Attribute traits type.

Static Public Member Functions inherited from neuroml2::BaseConnectionOldFormat
static preSegmentId_type	preSegmentId_default_value ()
	Return the default value for the attribute. More...

static preFractionAlong_type	preFractionAlong_default_value ()
	Return the default value for the attribute. More...

static postSegmentId_type	postSegmentId_default_value ()
	Return the default value for the attribute. More...

static postFractionAlong_type	postFractionAlong_default_value ()
	Return the default value for the attribute. More...

Detailed Description

Class corresponding to the Connection schema type.

Individual chemical (event based) synaptic connection, weight==1 and no delay

Definition at line 330 of file NeuroML_custom.hxx.

Constructor & Destructor Documentation

◆ Connection() [1/2]

neuroml2::Connection::Connection	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

Definition at line 260 of file NeuroML_custom.cxx.

◆ Connection() [2/2]

neuroml2::Connection::Connection	(	const Connection &	x,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

Definition at line 265 of file NeuroML_custom.cxx.

Member Function Documentation

◆ _clone()

Connection * neuroml2::Connection::_clone	(	::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)		const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns: A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented from neuroml2::Connection_base.

Definition at line 270 of file NeuroML_custom.cxx.

The documentation for this class was generated from the following files:

/home/runner/work/NeuroML_API/NeuroML_API/src/NeuroML_custom.hxx
/home/runner/work/NeuroML_API/NeuroML_API/src/NeuroML_custom.cxx
