neuroml2::AlphaCurrSynapse Class Reference

Class corresponding to the AlphaCurrSynapse schema type. More...

#include <NeuroML_v2.3.hxx>

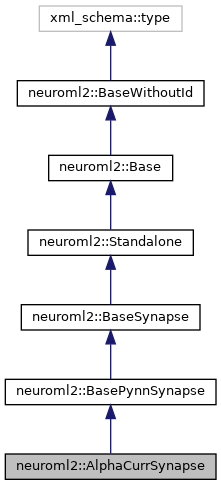

Inheritance diagram for neuroml2::AlphaCurrSynapse:

Collaboration diagram for neuroml2::AlphaCurrSynapse:

Constructors
	AlphaCurrSynapse (const id_type &, const tau_syn_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.
	AlphaCurrSynapse (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...
	AlphaCurrSynapse (const AlphaCurrSynapse &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...
virtual AlphaCurrSynapse *	_clone (::xml_schema::flags f=0, ::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...
virtual	~AlphaCurrSynapse ()
	Destructor.

Additional Inherited Members
Public Types inherited from neuroml2::BasePynnSynapse
typedef ::xml_schema::float_	tau_syn_type
	Attribute type.
typedef ::xsd::cxx::tree::traits< tau_syn_type, char >	tau_syn_traits
	Attribute traits type.
Public Types inherited from neuroml2::BaseSynapse
typedef ::neuroml2::NeuroLexId	neuroLexId_type
	Attribute type.
typedef ::xsd::cxx::tree::optional< neuroLexId_type >	neuroLexId_optional
	Attribute optional container type.
typedef ::xsd::cxx::tree::traits< neuroLexId_type, char >	neuroLexId_traits
	Attribute traits type.
Public Types inherited from neuroml2::Standalone
typedef ::neuroml2::Notes	notes_type
	Element type.
typedef ::xsd::cxx::tree::optional< notes_type >	notes_optional
	Element optional container type.
typedef ::xsd::cxx::tree::traits< notes_type, char >	notes_traits
	Element traits type.
typedef ::neuroml2::Property	property_type
	Element type.
typedef ::xsd::cxx::tree::sequence< property_type >	property_sequence
	Element sequence container type.
typedef property_sequence::iterator	property_iterator
	Element iterator type.
typedef property_sequence::const_iterator	property_const_iterator
	Element constant iterator type.
typedef ::xsd::cxx::tree::traits< property_type, char >	property_traits
	Element traits type.
typedef ::neuroml2::Annotation	annotation_type
	Element type.
typedef ::xsd::cxx::tree::optional< annotation_type >	annotation_optional
	Element optional container type.
typedef ::xsd::cxx::tree::traits< annotation_type, char >	annotation_traits
	Element traits type.
typedef ::neuroml2::MetaId	metaid_type
	Attribute type.
typedef ::xsd::cxx::tree::optional< metaid_type >	metaid_optional
	Attribute optional container type.
typedef ::xsd::cxx::tree::traits< metaid_type, char >	metaid_traits
	Attribute traits type.
Public Types inherited from neuroml2::Base
typedef ::neuroml2::NmlId	id_type
	Attribute type.
typedef ::xsd::cxx::tree::traits< id_type, char >	id_traits
	Attribute traits type.
Public Member Functions inherited from neuroml2::BasePynnSynapse
const tau_syn_type &	tau_syn () const
	Return a read-only (constant) reference to the attribute. More...
tau_syn_type &	tau_syn ()
	Return a read-write reference to the attribute. More...
void	tau_syn (const tau_syn_type &x)
	Set the attribute value. More...
	BasePynnSynapse (const id_type &, const tau_syn_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.
	BasePynnSynapse (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...
	BasePynnSynapse (const BasePynnSynapse &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...
BasePynnSynapse &	operator= (const BasePynnSynapse &x)
	Copy assignment operator. More...
virtual	~BasePynnSynapse ()
	Destructor.
Public Member Functions inherited from neuroml2::BaseSynapse
const neuroLexId_optional &	neuroLexId () const
	Return a read-only (constant) reference to the attribute container. More...
neuroLexId_optional &	neuroLexId ()
	Return a read-write reference to the attribute container. More...
void	neuroLexId (const neuroLexId_type &x)
	Set the attribute value. More...
void	neuroLexId (const neuroLexId_optional &x)
	Set the attribute value. More...
void	neuroLexId (::std::unique_ptr< neuroLexId_type > p)
	Set the attribute value without copying. More...
	BaseSynapse (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.
	BaseSynapse (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...
	BaseSynapse (const BaseSynapse &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...
BaseSynapse &	operator= (const BaseSynapse &x)
	Copy assignment operator. More...
virtual	~BaseSynapse ()
	Destructor.
Public Member Functions inherited from neuroml2::Standalone
const notes_optional &	notes () const
	Return a read-only (constant) reference to the element container. More...
notes_optional &	notes ()
	Return a read-write reference to the element container. More...
void	notes (const notes_type &x)
	Set the element value. More...
void	notes (const notes_optional &x)
	Set the element value. More...
void	notes (::std::unique_ptr< notes_type > p)
	Set the element value without copying. More...
const property_sequence &	property () const
	Return a read-only (constant) reference to the element sequence. More...
property_sequence &	property ()
	Return a read-write reference to the element sequence. More...
void	property (const property_sequence &s)
	Copy elements from a given sequence. More...
const annotation_optional &	annotation () const
	Return a read-only (constant) reference to the element container. More...
annotation_optional &	annotation ()
	Return a read-write reference to the element container. More...
void	annotation (const annotation_type &x)
	Set the element value. More...
void	annotation (const annotation_optional &x)
	Set the element value. More...
void	annotation (::std::unique_ptr< annotation_type > p)
	Set the element value without copying. More...
const metaid_optional &	metaid () const
	Return a read-only (constant) reference to the attribute container. More...
metaid_optional &	metaid ()
	Return a read-write reference to the attribute container. More...
void	metaid (const metaid_type &x)
	Set the attribute value. More...
void	metaid (const metaid_optional &x)
	Set the attribute value. More...
void	metaid (::std::unique_ptr< metaid_type > p)
	Set the attribute value without copying. More...
	Standalone (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.
	Standalone (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...
	Standalone (const Standalone &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...
Standalone &	operator= (const Standalone &x)
	Copy assignment operator. More...
virtual	~Standalone ()
	Destructor.
Public Member Functions inherited from neuroml2::Base
const id_type &	id () const
	Return a read-only (constant) reference to the attribute. More...
id_type &	id ()
	Return a read-write reference to the attribute. More...
void	id (const id_type &x)
	Set the attribute value. More...
void	id (::std::unique_ptr< id_type > p)
	Set the attribute value without copying. More...
	Base (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.
	Base (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...
	Base (const Base &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...
Base &	operator= (const Base &x)
	Copy assignment operator. More...
virtual	~Base ()
	Destructor.
Public Member Functions inherited from neuroml2::BaseWithoutId
	BaseWithoutId ()
	Create an instance from the ultimate base and initializers for required elements and attributes.
	BaseWithoutId (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...
	BaseWithoutId (const ::xercesc::DOMAttr &a, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM attribute. More...
	BaseWithoutId (const ::std::string &s, const ::xercesc::DOMElement *e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a string fragment. More...
	BaseWithoutId (const BaseWithoutId &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...
virtual	~BaseWithoutId ()
	Destructor.

Detailed Description

Class corresponding to the AlphaCurrSynapse schema type.

Alpha synapse: rise time and decay time are both tau_syn. Current based synapse.
:param tau_syn: :type tau_syn: none

Definition at line 69432 of file NeuroML_v2.3.hxx.

Constructor & Destructor Documentation

AlphaCurrSynapse() [1/2]

neuroml2::AlphaCurrSynapse::AlphaCurrSynapse	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

Definition at line 49217 of file NeuroML_v2.3.cxx.

AlphaCurrSynapse() [2/2]

neuroml2::AlphaCurrSynapse::AlphaCurrSynapse	(	const AlphaCurrSynapse &	x,
		::xml_schema::flags	f = 0,
		::xml_schema::container *	c = 0
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

Definition at line 49209 of file NeuroML_v2.3.cxx.

Member Function Documentation

_clone()

AlphaCurrSynapse * neuroml2::AlphaCurrSynapse::_clone ( ::xml_schema::flags  f = 0, ::xml_schema::container *  c = 0  ) const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns

A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented from neuroml2::BasePynnSynapse.

Definition at line 49225 of file NeuroML_v2.3.cxx.

---

The documentation for this class was generated from the following files:

• src/NeuroML_v2.3.hxx
• src/NeuroML_v2.3.cxx
