neuroml2::IF_cond_exp Class Reference

Class corresponding to the IF_cond_exp schema type. More...

#include <NeuroML_v2.3.hxx>

+ Inheritance diagram for neuroml2::IF_cond_exp:

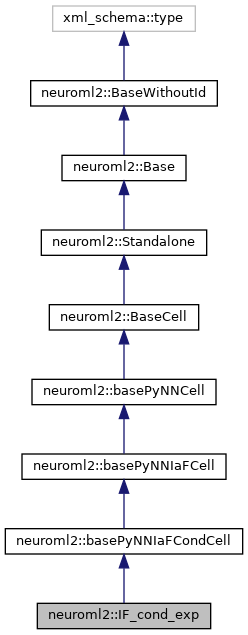

+ Collaboration diagram for neuroml2::IF_cond_exp:

Constructors

 IF_cond_exp (const id_type &, const cm_type &, const i_offset_type &, const tau_syn_E_type &, const tau_syn_I_type &, const v_init_type &, const tau_m_type &, const tau_refrac_type &, const v_reset_type &, const v_rest_type &, const v_thresh_type &, const e_rev_E_type &, const e_rev_I_type &)
 Create an instance from the ultimate base and initializers for required elements and attributes.

 IF_cond_exp (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Create an instance from a DOM element. More...

 IF_cond_exp (const IF_cond_exp &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Copy constructor. More...

virtual IF_cond_exp_clone (::xml_schema::flags f=0, ::xml_schema::container *c=0) const
 Copy the instance polymorphically. More...

virtual ~IF_cond_exp ()
 Destructor.


Additional Inherited Members

- Public Types inherited from neuroml2::basePyNNIaFCondCell
typedef ::xml_schema::float_ e_rev_E_type
 Attribute type.

typedef ::xsd::cxx::tree::traits< e_rev_E_type, char > e_rev_E_traits
 Attribute traits type.

typedef ::xml_schema::float_ e_rev_I_type
 Attribute type.

typedef ::xsd::cxx::tree::traits< e_rev_I_type, char > e_rev_I_traits
 Attribute traits type.

- Public Types inherited from neuroml2::basePyNNIaFCell
typedef ::xml_schema::float_ tau_m_type
 Attribute type.

typedef ::xsd::cxx::tree::traits< tau_m_type, char > tau_m_traits
 Attribute traits type.

typedef ::xml_schema::float_ tau_refrac_type
 Attribute type.

typedef ::xsd::cxx::tree::traits< tau_refrac_type, char > tau_refrac_traits
 Attribute traits type.

typedef ::xml_schema::float_ v_reset_type
 Attribute type.

typedef ::xsd::cxx::tree::traits< v_reset_type, char > v_reset_traits
 Attribute traits type.

typedef ::xml_schema::float_ v_rest_type
 Attribute type.

typedef ::xsd::cxx::tree::traits< v_rest_type, char > v_rest_traits
 Attribute traits type.

typedef ::xml_schema::float_ v_thresh_type
 Attribute type.

typedef ::xsd::cxx::tree::traits< v_thresh_type, char > v_thresh_traits
 Attribute traits type.

- Public Types inherited from neuroml2::basePyNNCell
typedef ::xml_schema::float_ cm_type
 Attribute type.

typedef ::xsd::cxx::tree::traits< cm_type, char > cm_traits
 Attribute traits type.

typedef ::xml_schema::float_ i_offset_type
 Attribute type.

typedef ::xsd::cxx::tree::traits< i_offset_type, char > i_offset_traits
 Attribute traits type.

typedef ::xml_schema::float_ tau_syn_E_type
 Attribute type.

typedef ::xsd::cxx::tree::traits< tau_syn_E_type, char > tau_syn_E_traits
 Attribute traits type.

typedef ::xml_schema::float_ tau_syn_I_type
 Attribute type.

typedef ::xsd::cxx::tree::traits< tau_syn_I_type, char > tau_syn_I_traits
 Attribute traits type.

typedef ::xml_schema::float_ v_init_type
 Attribute type.

typedef ::xsd::cxx::tree::traits< v_init_type, char > v_init_traits
 Attribute traits type.

- Public Types inherited from neuroml2::BaseCell
typedef ::neuroml2::NeuroLexId neuroLexId_type
 Attribute type.

typedef ::xsd::cxx::tree::optional< neuroLexId_typeneuroLexId_optional
 Attribute optional container type.

typedef ::xsd::cxx::tree::traits< neuroLexId_type, char > neuroLexId_traits
 Attribute traits type.

- Public Types inherited from neuroml2::Standalone
typedef ::neuroml2::Notes notes_type
 Element type.

typedef ::xsd::cxx::tree::optional< notes_typenotes_optional
 Element optional container type.

typedef ::xsd::cxx::tree::traits< notes_type, char > notes_traits
 Element traits type.

typedef ::neuroml2::Property property_type
 Element type.

typedef ::xsd::cxx::tree::sequence< property_typeproperty_sequence
 Element sequence container type.

typedef property_sequence::iterator property_iterator
 Element iterator type.

typedef property_sequence::const_iterator property_const_iterator
 Element constant iterator type.

typedef ::xsd::cxx::tree::traits< property_type, char > property_traits
 Element traits type.

typedef ::neuroml2::Annotation annotation_type
 Element type.

typedef ::xsd::cxx::tree::optional< annotation_typeannotation_optional
 Element optional container type.

typedef ::xsd::cxx::tree::traits< annotation_type, char > annotation_traits
 Element traits type.

typedef ::neuroml2::MetaId metaid_type
 Attribute type.

typedef ::xsd::cxx::tree::optional< metaid_typemetaid_optional
 Attribute optional container type.

typedef ::xsd::cxx::tree::traits< metaid_type, char > metaid_traits
 Attribute traits type.

- Public Types inherited from neuroml2::Base
typedef ::neuroml2::NmlId id_type
 Attribute type.

typedef ::xsd::cxx::tree::traits< id_type, char > id_traits
 Attribute traits type.

- Public Member Functions inherited from neuroml2::basePyNNIaFCondCell
const e_rev_E_typee_rev_E () const
 Return a read-only (constant) reference to the attribute. More...

e_rev_E_typee_rev_E ()
 Return a read-write reference to the attribute. More...

void e_rev_E (const e_rev_E_type &x)
 Set the attribute value. More...

const e_rev_I_typee_rev_I () const
 Return a read-only (constant) reference to the attribute. More...

e_rev_I_typee_rev_I ()
 Return a read-write reference to the attribute. More...

void e_rev_I (const e_rev_I_type &x)
 Set the attribute value. More...

 basePyNNIaFCondCell (const id_type &, const cm_type &, const i_offset_type &, const tau_syn_E_type &, const tau_syn_I_type &, const v_init_type &, const tau_m_type &, const tau_refrac_type &, const v_reset_type &, const v_rest_type &, const v_thresh_type &, const e_rev_E_type &, const e_rev_I_type &)
 Create an instance from the ultimate base and initializers for required elements and attributes.

 basePyNNIaFCondCell (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Create an instance from a DOM element. More...

 basePyNNIaFCondCell (const basePyNNIaFCondCell &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Copy constructor. More...

basePyNNIaFCondCelloperator= (const basePyNNIaFCondCell &x)
 Copy assignment operator. More...

virtual ~basePyNNIaFCondCell ()
 Destructor.

- Public Member Functions inherited from neuroml2::basePyNNIaFCell
const tau_m_typetau_m () const
 Return a read-only (constant) reference to the attribute. More...

tau_m_typetau_m ()
 Return a read-write reference to the attribute. More...

void tau_m (const tau_m_type &x)
 Set the attribute value. More...

const tau_refrac_typetau_refrac () const
 Return a read-only (constant) reference to the attribute. More...

tau_refrac_typetau_refrac ()
 Return a read-write reference to the attribute. More...

void tau_refrac (const tau_refrac_type &x)
 Set the attribute value. More...

const v_reset_typev_reset () const
 Return a read-only (constant) reference to the attribute. More...

v_reset_typev_reset ()
 Return a read-write reference to the attribute. More...

void v_reset (const v_reset_type &x)
 Set the attribute value. More...

const v_rest_typev_rest () const
 Return a read-only (constant) reference to the attribute. More...

v_rest_typev_rest ()
 Return a read-write reference to the attribute. More...

void v_rest (const v_rest_type &x)
 Set the attribute value. More...

const v_thresh_typev_thresh () const
 Return a read-only (constant) reference to the attribute. More...

v_thresh_typev_thresh ()
 Return a read-write reference to the attribute. More...

void v_thresh (const v_thresh_type &x)
 Set the attribute value. More...

 basePyNNIaFCell (const id_type &, const cm_type &, const i_offset_type &, const tau_syn_E_type &, const tau_syn_I_type &, const v_init_type &, const tau_m_type &, const tau_refrac_type &, const v_reset_type &, const v_rest_type &, const v_thresh_type &)
 Create an instance from the ultimate base and initializers for required elements and attributes.

 basePyNNIaFCell (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Create an instance from a DOM element. More...

 basePyNNIaFCell (const basePyNNIaFCell &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Copy constructor. More...

basePyNNIaFCelloperator= (const basePyNNIaFCell &x)
 Copy assignment operator. More...

virtual ~basePyNNIaFCell ()
 Destructor.

- Public Member Functions inherited from neuroml2::basePyNNCell
const cm_typecm () const
 Return a read-only (constant) reference to the attribute. More...

cm_typecm ()
 Return a read-write reference to the attribute. More...

void cm (const cm_type &x)
 Set the attribute value. More...

const i_offset_typei_offset () const
 Return a read-only (constant) reference to the attribute. More...

i_offset_typei_offset ()
 Return a read-write reference to the attribute. More...

void i_offset (const i_offset_type &x)
 Set the attribute value. More...

const tau_syn_E_typetau_syn_E () const
 Return a read-only (constant) reference to the attribute. More...

tau_syn_E_typetau_syn_E ()
 Return a read-write reference to the attribute. More...

void tau_syn_E (const tau_syn_E_type &x)
 Set the attribute value. More...

const tau_syn_I_typetau_syn_I () const
 Return a read-only (constant) reference to the attribute. More...

tau_syn_I_typetau_syn_I ()
 Return a read-write reference to the attribute. More...

void tau_syn_I (const tau_syn_I_type &x)
 Set the attribute value. More...

const v_init_typev_init () const
 Return a read-only (constant) reference to the attribute. More...

v_init_typev_init ()
 Return a read-write reference to the attribute. More...

void v_init (const v_init_type &x)
 Set the attribute value. More...

 basePyNNCell (const id_type &, const cm_type &, const i_offset_type &, const tau_syn_E_type &, const tau_syn_I_type &, const v_init_type &)
 Create an instance from the ultimate base and initializers for required elements and attributes.

 basePyNNCell (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Create an instance from a DOM element. More...

 basePyNNCell (const basePyNNCell &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Copy constructor. More...

basePyNNCelloperator= (const basePyNNCell &x)
 Copy assignment operator. More...

virtual ~basePyNNCell ()
 Destructor.

- Public Member Functions inherited from neuroml2::BaseCell
const neuroLexId_optionalneuroLexId () const
 Return a read-only (constant) reference to the attribute container. More...

neuroLexId_optionalneuroLexId ()
 Return a read-write reference to the attribute container. More...

void neuroLexId (const neuroLexId_type &x)
 Set the attribute value. More...

void neuroLexId (const neuroLexId_optional &x)
 Set the attribute value. More...

void neuroLexId (::std::unique_ptr< neuroLexId_type > p)
 Set the attribute value without copying. More...

 BaseCell (const id_type &)
 Create an instance from the ultimate base and initializers for required elements and attributes.

 BaseCell (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Create an instance from a DOM element. More...

 BaseCell (const BaseCell &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Copy constructor. More...

BaseCelloperator= (const BaseCell &x)
 Copy assignment operator. More...

virtual ~BaseCell ()
 Destructor.

- Public Member Functions inherited from neuroml2::Standalone
const notes_optionalnotes () const
 Return a read-only (constant) reference to the element container. More...

notes_optionalnotes ()
 Return a read-write reference to the element container. More...

void notes (const notes_type &x)
 Set the element value. More...

void notes (const notes_optional &x)
 Set the element value. More...

void notes (::std::unique_ptr< notes_type > p)
 Set the element value without copying. More...

const property_sequenceproperty () const
 Return a read-only (constant) reference to the element sequence. More...

property_sequenceproperty ()
 Return a read-write reference to the element sequence. More...

void property (const property_sequence &s)
 Copy elements from a given sequence. More...

const annotation_optionalannotation () const
 Return a read-only (constant) reference to the element container. More...

annotation_optionalannotation ()
 Return a read-write reference to the element container. More...

void annotation (const annotation_type &x)
 Set the element value. More...

void annotation (const annotation_optional &x)
 Set the element value. More...

void annotation (::std::unique_ptr< annotation_type > p)
 Set the element value without copying. More...

const metaid_optionalmetaid () const
 Return a read-only (constant) reference to the attribute container. More...

metaid_optionalmetaid ()
 Return a read-write reference to the attribute container. More...

void metaid (const metaid_type &x)
 Set the attribute value. More...

void metaid (const metaid_optional &x)
 Set the attribute value. More...

void metaid (::std::unique_ptr< metaid_type > p)
 Set the attribute value without copying. More...

 Standalone (const id_type &)
 Create an instance from the ultimate base and initializers for required elements and attributes.

 Standalone (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Create an instance from a DOM element. More...

 Standalone (const Standalone &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Copy constructor. More...

Standaloneoperator= (const Standalone &x)
 Copy assignment operator. More...

virtual ~Standalone ()
 Destructor.

- Public Member Functions inherited from neuroml2::Base
const id_typeid () const
 Return a read-only (constant) reference to the attribute. More...

id_typeid ()
 Return a read-write reference to the attribute. More...

void id (const id_type &x)
 Set the attribute value. More...

void id (::std::unique_ptr< id_type > p)
 Set the attribute value without copying. More...

 Base (const id_type &)
 Create an instance from the ultimate base and initializers for required elements and attributes.

 Base (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Create an instance from a DOM element. More...

 Base (const Base &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Copy constructor. More...

Baseoperator= (const Base &x)
 Copy assignment operator. More...

virtual ~Base ()
 Destructor.

- Public Member Functions inherited from neuroml2::BaseWithoutId
 BaseWithoutId ()
 Create an instance from the ultimate base and initializers for required elements and attributes.

 BaseWithoutId (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Create an instance from a DOM element. More...

 BaseWithoutId (const ::xercesc::DOMAttr &a, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Create an instance from a DOM attribute. More...

 BaseWithoutId (const ::std::string &s, const ::xercesc::DOMElement *e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Create an instance from a string fragment. More...

 BaseWithoutId (const BaseWithoutId &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
 Copy constructor. More...

virtual ~BaseWithoutId ()
 Destructor.


Detailed Description

Class corresponding to the IF_cond_exp schema type.

Leaky integrate and fire model with fixed threshold and exponentially-decaying post-synaptic conductance
:param e_rev_E: This parameter is never used in the NeuroML2 description of this cell! Any synapse producing a current can be placed on this cell :type e_rev_E: none :param e_rev_I: This parameter is never used in the NeuroML2 description of this cell! Any synapse producing a current can be placed on this cell :type e_rev_I: none :param tau_refrac: :type tau_refrac: none :param v_thresh: :type v_thresh: none :param tau_m: :type tau_m: none :param v_rest: :type v_rest: none :param v_reset: :type v_reset: none :param cm: :type cm: none :param i_offset: :type i_offset: none :param tau_syn_E: This parameter is never used in the NeuroML2 description of this cell! Any synapse producing a current can be placed on this cell :type tau_syn_E: none :param tau_syn_I: This parameter is never used in the NeuroML2 description of this cell! Any synapse producing a current can be placed on this cell :type tau_syn_I: none :param v_init: :type v_init: none

Definition at line 67680 of file NeuroML_v2.3.hxx.

Constructor & Destructor Documentation

◆ IF_cond_exp() [1/2]

neuroml2::IF_cond_exp::IF_cond_exp ( const ::xercesc::DOMElement &  e,
::xml_schema::flags  f = 0,
::xml_schema::container c = 0
)

Create an instance from a DOM element.

Parameters
eA DOM element to extract the data from.
fFlags to create the new instance with.
cA pointer to the object that will contain the new instance.

Definition at line 48248 of file NeuroML_v2.3.cxx.

◆ IF_cond_exp() [2/2]

neuroml2::IF_cond_exp::IF_cond_exp ( const IF_cond_exp x,
::xml_schema::flags  f = 0,
::xml_schema::container c = 0
)

Copy constructor.

Parameters
xAn instance to make a copy of.
fFlags to create the copy with.
cA pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

Definition at line 48240 of file NeuroML_v2.3.cxx.

Member Function Documentation

◆ _clone()

IF_cond_exp * neuroml2::IF_cond_exp::_clone ( ::xml_schema::flags  f = 0,
::xml_schema::container c = 0
) const
virtual

Copy the instance polymorphically.

Parameters
fFlags to create the copy with.
cA pointer to the object that will contain the copy.
Returns
A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented from neuroml2::basePyNNIaFCondCell.

Definition at line 48256 of file NeuroML_v2.3.cxx.


The documentation for this class was generated from the following files:
