Class corresponding to the PulseGeneratorDL schema type. More...

#include <NeuroML_v2.3.hxx>

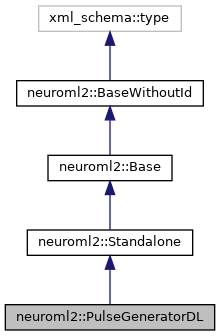

Inheritance diagram for neuroml2::PulseGeneratorDL:

Collaboration diagram for neuroml2::PulseGeneratorDL:

delay
Accessor and modifier functions for the delay required attribute.
typedef ::neuroml2::Nml2Quantity_time	delay_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< delay_type, char >	delay_traits
	Attribute traits type.

const delay_type &	delay () const
	Return a read-only (constant) reference to the attribute. More...

delay_type &	delay ()
	Return a read-write reference to the attribute. More...

void	delay (const delay_type &x)
	Set the attribute value. More...

void	delay (::std::unique_ptr< delay_type > p)
	Set the attribute value without copying. More...

duration
Accessor and modifier functions for the duration required attribute.
typedef ::neuroml2::Nml2Quantity_time	duration_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< duration_type, char >	duration_traits
	Attribute traits type.

const duration_type &	duration () const
	Return a read-only (constant) reference to the attribute. More...

duration_type &	duration ()
	Return a read-write reference to the attribute. More...

void	duration (const duration_type &x)
	Set the attribute value. More...

void	duration (::std::unique_ptr< duration_type > p)
	Set the attribute value without copying. More...

amplitude
Accessor and modifier functions for the amplitude required attribute.
typedef ::neuroml2::Nml2Quantity_none	amplitude_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< amplitude_type, char >	amplitude_traits
	Attribute traits type.

const amplitude_type &	amplitude () const
	Return a read-only (constant) reference to the attribute. More...

amplitude_type &	amplitude ()
	Return a read-write reference to the attribute. More...

void	amplitude (const amplitude_type &x)
	Set the attribute value. More...

void	amplitude (::std::unique_ptr< amplitude_type > p)
	Set the attribute value without copying. More...

Constructors
	PulseGeneratorDL (const id_type &, const delay_type &, const duration_type &, const amplitude_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	PulseGeneratorDL (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	PulseGeneratorDL (const PulseGeneratorDL &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual PulseGeneratorDL *	_clone (::xml_schema::flags f=0, ::xml_schema::container *c=0) const
	Copy the instance polymorphically. More...

PulseGeneratorDL &	operator= (const PulseGeneratorDL &x)
	Copy assignment operator. More...

virtual	~PulseGeneratorDL ()
	Destructor.

Additional Inherited Members
Public Types inherited from neuroml2::Standalone
typedef ::neuroml2::Notes	notes_type
	Element type.

typedef ::xsd::cxx::tree::optional< notes_type >	notes_optional
	Element optional container type.

typedef ::xsd::cxx::tree::traits< notes_type, char >	notes_traits
	Element traits type.

typedef ::neuroml2::Property	property_type
	Element type.

typedef ::xsd::cxx::tree::sequence< property_type >	property_sequence
	Element sequence container type.

typedef property_sequence::iterator	property_iterator
	Element iterator type.

typedef property_sequence::const_iterator	property_const_iterator
	Element constant iterator type.

typedef ::xsd::cxx::tree::traits< property_type, char >	property_traits
	Element traits type.

typedef ::neuroml2::Annotation	annotation_type
	Element type.

typedef ::xsd::cxx::tree::optional< annotation_type >	annotation_optional
	Element optional container type.

typedef ::xsd::cxx::tree::traits< annotation_type, char >	annotation_traits
	Element traits type.

typedef ::neuroml2::MetaId	metaid_type
	Attribute type.

typedef ::xsd::cxx::tree::optional< metaid_type >	metaid_optional
	Attribute optional container type.

typedef ::xsd::cxx::tree::traits< metaid_type, char >	metaid_traits
	Attribute traits type.

Public Types inherited from neuroml2::Base
typedef ::neuroml2::NmlId	id_type
	Attribute type.

typedef ::xsd::cxx::tree::traits< id_type, char >	id_traits
	Attribute traits type.

Public Member Functions inherited from neuroml2::Standalone
const notes_optional &	notes () const
	Return a read-only (constant) reference to the element container. More...

notes_optional &	notes ()
	Return a read-write reference to the element container. More...

void	notes (const notes_type &x)
	Set the element value. More...

void	notes (const notes_optional &x)
	Set the element value. More...

void	notes (::std::unique_ptr< notes_type > p)
	Set the element value without copying. More...

const property_sequence &	property () const
	Return a read-only (constant) reference to the element sequence. More...

property_sequence &	property ()
	Return a read-write reference to the element sequence. More...

void	property (const property_sequence &s)
	Copy elements from a given sequence. More...

const annotation_optional &	annotation () const
	Return a read-only (constant) reference to the element container. More...

annotation_optional &	annotation ()
	Return a read-write reference to the element container. More...

void	annotation (const annotation_type &x)
	Set the element value. More...

void	annotation (const annotation_optional &x)
	Set the element value. More...

void	annotation (::std::unique_ptr< annotation_type > p)
	Set the element value without copying. More...

const metaid_optional &	metaid () const
	Return a read-only (constant) reference to the attribute container. More...

metaid_optional &	metaid ()
	Return a read-write reference to the attribute container. More...

void	metaid (const metaid_type &x)
	Set the attribute value. More...

void	metaid (const metaid_optional &x)
	Set the attribute value. More...

void	metaid (::std::unique_ptr< metaid_type > p)
	Set the attribute value without copying. More...

	Standalone (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	Standalone (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	Standalone (const Standalone &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

Standalone &	operator= (const Standalone &x)
	Copy assignment operator. More...

virtual	~Standalone ()
	Destructor.

Public Member Functions inherited from neuroml2::Base
const id_type &	id () const
	Return a read-only (constant) reference to the attribute. More...

id_type &	id ()
	Return a read-write reference to the attribute. More...

void	id (const id_type &x)
	Set the attribute value. More...

void	id (::std::unique_ptr< id_type > p)
	Set the attribute value without copying. More...

	Base (const id_type &)
	Create an instance from the ultimate base and initializers for required elements and attributes.

	Base (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	Base (const Base &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

Base &	operator= (const Base &x)
	Copy assignment operator. More...

virtual	~Base ()
	Destructor.

Public Member Functions inherited from neuroml2::BaseWithoutId
	BaseWithoutId ()
	Create an instance from the ultimate base and initializers for required elements and attributes.

	BaseWithoutId (const ::xercesc::DOMElement &e, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM element. More...

	BaseWithoutId (const ::xercesc::DOMAttr &a, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Create an instance from a DOM attribute. More...

	BaseWithoutId (const ::std::string &s, const ::xercesc::DOMElement e, ::xml_schema::flags f=0, ::xml_schema::container c=0)
	Create an instance from a string fragment. More...

	BaseWithoutId (const BaseWithoutId &x, ::xml_schema::flags f=0, ::xml_schema::container *c=0)
	Copy constructor. More...

virtual	~BaseWithoutId ()
	Destructor.

Detailed Description

Class corresponding to the PulseGeneratorDL schema type.

Dimensionless equivalent of pulseGenerator . Generates a constant current pulse of a certain amplitude for a specified duration after a delay. Scaled by weight, if set
:param delay: Delay before change in current. Current is zero prior to this. :type delay: time :param duration: Duration for holding current at amplitude. Current is zero after delay + duration. :type duration: time :param amplitude: Amplitude of current pulse :type amplitude: none

Definition at line 50761 of file NeuroML_v2.3.hxx.

Constructor & Destructor Documentation

◆ PulseGeneratorDL() [1/2]

neuroml2::PulseGeneratorDL::PulseGeneratorDL	(	const ::xercesc::DOMElement &	e,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Create an instance from a DOM element.

Parameters

e	A DOM element to extract the data from.
f	Flags to create the new instance with.
c	A pointer to the object that will contain the new instance.

Definition at line 40202 of file NeuroML_v2.3.cxx.

◆ PulseGeneratorDL() [2/2]

neuroml2::PulseGeneratorDL::PulseGeneratorDL	(	const PulseGeneratorDL &	x,
		::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)

Copy constructor.

Parameters

x	An instance to make a copy of.
f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

For polymorphic object models use the _clone function instead.

Definition at line 40191 of file NeuroML_v2.3.cxx.

Member Function Documentation

◆ _clone()

PulseGeneratorDL * neuroml2::PulseGeneratorDL::_clone	(	::xml_schema::flags	f = `0`,
		::xml_schema::container *	c = `0`
	)		const

virtual

Copy the instance polymorphically.

Parameters

f	Flags to create the copy with.
c	A pointer to the object that will contain the copy.

Returns: A pointer to the dynamically allocated copy.

This function ensures that the dynamic type of the instance is used for copying and should be used for polymorphic object models instead of the copy constructor.

Reimplemented from neuroml2::Standalone.

Definition at line 40273 of file NeuroML_v2.3.cxx.

◆ amplitude() [1/4]

PulseGeneratorDL::amplitude_type & neuroml2::PulseGeneratorDL::amplitude ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 12596 of file NeuroML_v2.3.cxx.

◆ amplitude() [2/4]

const PulseGeneratorDL::amplitude_type & neuroml2::PulseGeneratorDL::amplitude ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 12590 of file NeuroML_v2.3.cxx.

◆ amplitude() [3/4]

void neuroml2::PulseGeneratorDL::amplitude ( ::std::unique_ptr< amplitude_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 12608 of file NeuroML_v2.3.cxx.

◆ amplitude() [4/4]

void neuroml2::PulseGeneratorDL::amplitude ( const amplitude_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 12602 of file NeuroML_v2.3.cxx.

◆ delay() [1/4]

PulseGeneratorDL::delay_type & neuroml2::PulseGeneratorDL::delay ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 12548 of file NeuroML_v2.3.cxx.

◆ delay() [2/4]

const PulseGeneratorDL::delay_type & neuroml2::PulseGeneratorDL::delay ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 12542 of file NeuroML_v2.3.cxx.

◆ delay() [3/4]

void neuroml2::PulseGeneratorDL::delay ( ::std::unique_ptr< delay_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 12560 of file NeuroML_v2.3.cxx.

◆ delay() [4/4]

void neuroml2::PulseGeneratorDL::delay ( const delay_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 12554 of file NeuroML_v2.3.cxx.

◆ duration() [1/4]

PulseGeneratorDL::duration_type & neuroml2::PulseGeneratorDL::duration ( )

Return a read-write reference to the attribute.

Returns: A reference to the attribute.

Definition at line 12572 of file NeuroML_v2.3.cxx.

◆ duration() [2/4]

const PulseGeneratorDL::duration_type & neuroml2::PulseGeneratorDL::duration ( ) const

Return a read-only (constant) reference to the attribute.

Returns: A constant reference to the attribute.

Definition at line 12566 of file NeuroML_v2.3.cxx.

◆ duration() [3/4]

void neuroml2::PulseGeneratorDL::duration ( ::std::unique_ptr< duration_type > p )

Set the attribute value without copying.

Parameters

p	A new value to use.

This function will try to use the passed value directly instead of making a copy.

Definition at line 12584 of file NeuroML_v2.3.cxx.

◆ duration() [4/4]

void neuroml2::PulseGeneratorDL::duration ( const duration_type & x )

Set the attribute value.

Parameters

x	A new value to set.

This function makes a copy of its argument and sets it as the new value of the attribute.

Definition at line 12578 of file NeuroML_v2.3.cxx.

◆ operator=()

PulseGeneratorDL & neuroml2::PulseGeneratorDL::operator= ( const PulseGeneratorDL & x )

Copy assignment operator.

Parameters

x	An instance to make a copy of.

Returns: A reference to itself.

For polymorphic object models use the _clone function instead.

Definition at line 40280 of file NeuroML_v2.3.cxx.

The documentation for this class was generated from the following files:

src/NeuroML_v2.3.hxx
src/NeuroML_v2.3.cxx

delay

duration

amplitude

Constructors

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ PulseGeneratorDL() [1/2]

◆ PulseGeneratorDL() [2/2]

Member Function Documentation

◆ _clone()

◆ amplitude() [1/4]

◆ amplitude() [2/4]

◆ amplitude() [3/4]

◆ amplitude() [4/4]

◆ delay() [1/4]

◆ delay() [2/4]

◆ delay() [3/4]

◆ delay() [4/4]

◆ duration() [1/4]

◆ duration() [2/4]

◆ duration() [3/4]

◆ duration() [4/4]

◆ operator=()
